Advance Innovation Centre
  • AIC Knowledge @ EEC for All
  • 😎Logical Thinking
    • Karel Robot
    • Code to Flowchart
    • Play with Docker
    • CNX Software
  • MCU & Interfacing with Infineon PSOC™
    • Basic MCU Interfacing
      • Introduction to CY8CKIT-062S2-43012 Pioneer Kit
      • Development Environment Preparation
      • PSoC™ 6S2 Peripherals Interfacing (GPIO)
        • Hello World and LED Blinking
        • GPIO Principles
        • PSoC™ 6S2 GPIO-HAL LED Blink Lab
        • PSoC™ 6S2 GPIO-PDL LED Blink Lab
        • Button "Bounce" Principles
          • Push/Pull Button to Turn ON/OFF LED via HAL
          • Push/Pull Button to Turn ON/OFF LED via PDL
          • GPIO Button Interrupt via HAL
          • GPIO Button Interrupt via PDL
        • GPIO variables & functions
      • PSoC™ 6S2 Peripherals Interfacing (ADC, PWM)
        • PSoC™ 6S2 SAR ADC
          • ADC Principles
          • PSoC™ 6S2 with ADC Labs
            • Reading potentiometer sensor value via an ADC HAL
            • Reading potentiometer sensor value via an ADC PDL
        • PSoC™ 6S2 PWM & TCPWM
          • PWM Principles
          • PSoC™ 6S2 for PMW Function Labs
            • LED Brightness using PWM via HAL
            • LED Brightness using PWM via PDL
    • Sensor Interfacing and HMI
      • OLED Display
        • OLED Display Principles
        • Calling BDH’s OLED functions
        • Display ADC via Potentiometer on OLED
      • BDH Shell
        • Shell Principles
        • LED Blinking and CAPSENSE via BDH Shell
        • Adding "History" command
        • Adding "Reboot" command
        • CAPSENSE Button and Slider
          • CAPSENSE Button and Slider with Capsense Tuner
          • CAPSENSE Button and Slider using FreeRTOS
    • Serial Communication & Visualization
      • UART, I2C, SPI Communication via Infineon PSoC™6
      • BMX160 Sensor Communication via Infineon PSoC™6
        • Reading ADC via HAL with Potentiometer and Displaying GUI on Serial Studio
        • Reading XENSIV-DPS-3XX Pressure Sensor and Displaying GUI on Serial Studio
        • Motion Sensors GUI Integration via Serial Studio
    • IoT Connectivity & Data Analytics via Node-Red
      • Node-Red Installation
      • Setting MQTTS to MQTT Broker
      • Sending PSoC6’s sensor to MQTT (node-red)
    • Edge AI on PSoC™
      • Machine Learning on PSoC™6 via Edge-Impulse
    • Infineon PSoC™ Troubleshooting
  • IoT Development with Infineon PSOC™ & BDH Platform
    • PSoC™ IoT Development Kit
      • Introduction to CY8CKIT-062S2-43012 Pioneer Kit
      • Development Environment Preparation
        • Hello World and LED Blinking
    • IoT Connectivity
      • Node-Red Installation
      • Controlling PSoC™ LED using MQTT
      • Setting MQTTS to MQTT Broker
      • Sending PSoC6’s sensor to MQTT (node-red)
    • BDH IoT Connectivity
    • WireLinX™ IoT PLC
    • BDH X-Brain Data Analytics
      • PSoC6 Data Collection to CSV log file
    • Data Visualization
      • สร้าง Dashboard ด้วย Looker Studio
  • 🖥️Operation Systems
    • Prerequisites
      • Guideline from Ubuntu
        • Ubuntu and VSCode on WSL2
      • ติดตั้ง WSL 2
      • Run Ubuntu on VirtualBox7
    • Zero to Linux Hero
      • Computer OS Architecture
      • Anatomy of Linux System
        • UNIX/Linux History
        • UNIX/Linux Evolution
        • GNU Project
        • Linux OS Architecture
        • Command Line Interface (CLI)
          • Basic Commands
          • 😎Level up your Linux Shell
          • File & Dir. Commands
          • Searching Commands
          • 😎ChatGPT-based Terminal
          • SysAdmin Commands
          • Network Commands
          • Hacker Commands
        • Busybox
        • Shell Script
          • Awk Script
          • Bash Shell Script
            • Bash Snippets
            • Bash Useful Examples
      • Anatomy of Linux Kernel
        • Linux Kernel Principles
        • Linux Environment for Developer
      • Anatomy of Embedded Linux
        • Embedded Linux
        • Host & Target
        • Cross Toolchains
        • Bootloader
        • Building Embedded Linux
    • Linux OS Dev. Engineer
      • Process Management
        • Process Basic
        • Process State
        • Basic Process Mgmt. Commands
        • Advance Process Mgmt. Commands
        • Process API Programming
      • IPC
        • IPC Anatomy
        • Signal Programming
        • Pipe Programming
        • FIFO Programming
        • Msg. Queue Programming
          • System V
        • Share Memory Programming
          • System V
        • Socket Programming
      • POSIX Threads
        • Multi-tasking Basic
        • POSIX Thread Anatomy
        • Threading Programming
      • Applied IPC
        • Remote Commander
        • Multi-Remote Commanders
      • Process Synchronization
        • Mutex Programming
        • Semaphore Programming
      • Applied IPC with Semaphore
  • ⌚Embedded Systems Development
    • Introduction to ESD
      • Why's ESD?
      • What it use for?
      • How it works?
    • Enbedded System Development via PSoC6
      • Basic MCU Interfacing
        • Introduction to CY8CKIT-062S2-43012 Pioneer Kit
        • Development Environment Preparation
        • PSoC™ 6S2 Peripherals Interfacing (GPIO)
          • Hello World and LED Blinking
          • GPIO Principles
          • PSoC™ 6S2 GPIO-HAL LED Blink Lab
          • PSoC™ 6S2 GPIO-PDL LED Blink Lab
          • Button "Bounce" Principles
            • Push/Pull Button to Turn ON/OFF LED via HAL
            • Push/Pull Button to Turn ON/OFF LED via PDL
            • GPIO Button Interrupt via HAL
            • GPIO Button Interrupt via PDL
          • GPIO variables & functions
        • PSoC™ 6S2 Peripherals Interfacing (ADC, PWM)
          • PSoC™ 6S2 SAR ADC
            • ADC Principles
            • PSoC™ 6S2 with ADC Labs
              • Reading potentiometer sensor value via an ADC HAL
              • Reading potentiometer sensor value via an ADC PDL
          • PSoC™ 6S2 PWM & TCPWM
            • PWM Principles
            • PSoC™ 6S2 for PMW Function Labs
              • LED Brightness using PWM via HAL
              • LED Brightness using PWM via PDL
      • Sensor Interfacing and HMI
        • OLED Display
          • OLED Display Principles
          • Calling BDH’s OLED functions
          • Display ADC via Potentiometer on OLED
        • BDH Shell
          • Shell Principles
          • LED Blinking and CAPSENSE via BDH Shell
          • Adding "History" command
          • Adding "Reboot" command
          • CAPSENSE Button and Slider
            • CAPSENSE Button and Slider with Capsense Tuner
            • CAPSENSE Button and Slider using FreeRTOS
      • Serial Communication & Visualization
        • UART, I2C, SPI Communication via Infineon PSoC™6
        • BMX160 Sensor Communication via Infineon PSoC™6
          • Reading ADC via HAL with Potentiometer and Displaying GUI on Serial Studio
          • Reading XENSIV-DPS-3XX Pressure Sensor and Displaying GUI on Serial Studio
          • Motion Sensors GUI Integration via Serial Studio
    • Edge Computing and IoT Connectivity
    • Cloud-Based Data Analytics and Digital Twin
    • Edge Vision AI
    • Resources
      • Basic Hardware and Firmware
        • Environment Preparation
          • การติดตั้งโปรแกรม Arduino IDE
            • ตัวอย่างการเริ่มต้นใช้งาน Arduino IDE
          • การติดตั้งโปรแกรมสำหรับใช้งานเครื่องมือวัด NI MyDAQ
            • ตัวอย่างการตั้งค่าใช้ Digital Multimeter -NI ELVISmx
            • ตัวอย่างการตั้งค่าใช้ Oscilloscope-NI ELVISmx
          • ติดตั้งโปรแกรม KingstVIS
        • Basic measurement
          • Basic Digital and Analog I/O
            • LAB: Basic Digital Input/Output
            • LAB: Basic Analog Input/Output
          • Waveform
            • LAB: Oscilloscope
            • LAB: Oscilloscope and Function Generator
            • LAB: Pulse Width Modulation (PWM)
              • Homework
        • Interfacing and Communication
          • LAB: UART, RS485, RS232 Protocol
          • LAB: I2C Protocol
            • HOMEWORK
          • LAB: SPI Protocol
      • IoT Connectivity
        • Example: IoT with MQTT on Node-red
        • Data logger
        • LAB: Data Visualization
  • 🛠️C/C++ for Embedded Programming
    • Development Environment Preparation
      • ติดตั้ง WSL 2
      • ติดตั้ง Ubuntu environment
      • ติดตั้งโปรแกรม Visual Studio Code
      • การเชื่อมต่อ Virtual studio code เข้ากับ WSL
      • ติดตั้ง docker on WSL
    • Principle C/C++ Programming
      • Get started with C++
      • Makefile
        • Makefile Examples
      • Compiling and running
        • How to create a program that you can enter inputs.
          • Lab 1 Exercise
      • Arguments
        • Command line arguments in C and C++
      • signed and unsigned data types
      • Variable and Operator
      • If and If else
      • Loop, Infinite loop, and flag
        • Loop and Flag exercise
      • Array
        • Get to know with arrays
        • Implement example
      • Vector
    • Object Oriented Programming (OOP) in C++
      • Class and Object
      • Encapsulation and Abstraction
      • Polymorphism and Inheritance
    • C/C++ Preprocessing
      • Macro
        • Quiz Macro
      • File Inclusion
      • Conditional Compilation
      • Pragma directive
        • Quiz Pragma
    • String in C++
      • Concatenation
      • Split
    • Type conversions for C/C++
      • Conversion using Cast operator
    • Error handling
    • Data logger
      • การสร้างไฟล์และเขียนไฟล์
      • การอ่านไฟล์
      • การเก็บข้อมูลกับTime stamp
    • High performance programing
      • Multi-task and Multi-thread
        • Multi-threading example
      • Mutex
      • Queue
      • OpenCV
    • C/C++ Techniques
      • Makefile in action
      • Object Oriented Programming (OOP) in C++
        • Class and Object
        • Encapsulation and Abstraction
        • Polymorphism and Inheritance
      • C/C++ Preprocessing
        • Macro
          • Quiz Macro
        • File Inclusion
        • Conditional Compilation
        • Pragma directive
          • Quiz Pragma
      • Binary, Octal and Hexadecimal Numbers
      • Array and properties of an array
        • Get to know with arrays
        • Implement example
      • What's next?
  • 🤖Artificial Intelligence (AI)
    • VAMStack Design House, BUU
    • Data Analytics
      • Data cleansing
      • Data analytics
      • Data analytic exercise
    • Machine Learning
      • Neural Network Layers
      • Machine learning type
      • Dataset
      • Using Edge Impulse for AI Model
    • Basic Image Processing
      • Computer Vision using Python Language
        • Installation
        • Computer Vision Basics
          • Pixel and Color
          • Draw image
          • Basic Image processing
          • Morphology Transformations
          • Gaussian blur
          • Simple Thresholding
          • Contour
          • Canny edge detection
        • Case Study
          • Coin counting
          • Color detection & tracking
        • VAM_CV SDK
  • ⚙️FPGA Design and Development
    • Verilog HDL via Vivado IDE
      • LAB1: Setting Environment and Create Project
        • Create Vivado Project
      • LAB2: Hardware Description Language Work Flow
        • Simulation code
      • LAB3: Design HDL Project
        • Top Level Design
        • Top-level Simulation
      • LAB4: Asynchronous VS Synchronous Circuit
        • Simulation Synchronous counter
    • C/C++ Programming on Ultra96v2 FPGA Board
      • Application C/C++ on Ultra96v2 Part 1
        • Design Overview
        • Step 1 - Burn the image to SD card
        • Step 2 - Bring up Ultra96v2
        • Step 3 - Installing the Vitis-AI runtime packages
      • Application C/C++ on Ultra96v2 Part 2
        • STEP 1 : Setting auto boot Wifi
        • STEP 2 : How to working on Embedded
        • STEP 3 : How to run the test code
  • 🤖Robotics
    • Dobot Magician
      • Instruction of Dobot
      • Software Download
      • Basically of Program
        • Teaching and Playback
        • Write and Draw
        • LaserEngraving
        • 3D Printer
    • Robotino
      • Software Download
        • Robotino View
        • Robotino SIM
      • Charging
      • Connecting
      • Follow Line example
        • Basic block in Follow Line
    • RaspBlock
      • Get Started with Raspblock
  • 🚩Special Topics
    • Node-Red
      • Set up Raspberry Pi
      • Install node red in Raspberry Pi
      • Get started with Node Red
        • Open node-red
        • Turn off node red
        • Install Dashboard on Node-red
        • Use node red to show message
        • Using Ultrasonic sensor with node-red
    • IoT Cloud
      • Overview
        • How do they work?
          • Basic Knowlege
      • Installations
        • Install Docker
        • Install Mosquitto Broker
        • Install InfluxDB
        • Install Telegraf
        • Install Grafana
      • Get Sensor Value and Send to MQTT
        • Connect ESP3266 to sensor
        • Connect ESP3266 to MQTT
      • Integration
    • Senses IoT
      • SENSES IoT Platform
      • LAB8: MCU send data to IoT platform
    • CrowPi Dev Kit
      • Raspberry Pi with CrowPi
      • Remote to Raspberry Pi
      • Cross-Compile
        • Lab 1: Programming and cross complier
      • Hardware and Interfaces Usage CLI
        • LAB: Usage GPIO via CLI
        • LAB: Scan I2C bus via CLI
      • Python library for Crow Pi
      • wiringPi library (C) for CrowPi
        • Lab2: Crowpi and sensors
    • LVGL Development
      • LVGL - Light and Versatile Embedded Graphics Library
        • Setting program for LVGL Simulator
        • Get started with LVGL simulator
        • Example Library of LVGL
        • Create your own screen
          • Exercise
        • Style
          • Exercise
        • Event
    • Docker OS
      • Docker OS Part 1
        • Part 1 : Installation
        • Part 2 : Basic Docker OS and Linux CLI
      • Docker OS Part 2
        • Part 1 : Docker communication
        • Part 2 : Docker compose
      • Application Gstreamer on devcontainer
        • STEP 1 : Setting gstreamer environment
        • STEP 2 : Create the Gstreamer element on template
        • STEP 3 : Testing and application on your gst element
  • 🤟Recommended by AIC
    • Skill Roadmap
      • Embedded Engineer
      • Developer
    • Hardware Programming
    • Embedded Programming
    • General-propose Programming
    • Algorithmica
    • Thai Expert Knowledge
    • RT-Thread University Program
      • Infineon PSoC6
      • Kernel
        • Kernel Basics
        • Thread Management
        • Clock Management
        • Inter-thread synchronization
        • Inter-thread communication
        • Memory Management
        • Interrupt Management
        • Kernel porting
        • Atomic Operations
        • RT-Thread SMP
        • Kernel API Changelog
      • Tools
      • Devices & Drivers
        • SENSOR Devices
        • Touch Equipment
        • CRYPTO Devices
        • AUDIO Devices
        • Pulse Encoder Devices
      • Components
        • C Library (libc)
        • ISO/ANSI C Standard
        • POSIX Standard
          • FILE (File IO)
          • Pthread
          • Timer
          • IPC Semaphore
          • IPC Message Queues
          • Dynamic Modules
        • Network Components
          • FinSH Console
          • FAL: Flash Abstraction Layer
          • Virtual File System
          • tmpfs: temporary file system
          • ulog log
          • utest testing framework
          • Power Management
          • RT-Link
        • Software Packages
          • Internet of Things
            • MQTT-umqtt
            • Telnet
          • Tools
            • SystemView
            • SEGGER_RTT
          • LVGL Manual
            • Touch Screen Driver
      • Demo
        • Infineon Gateway
        • Handwriting Recognition (MNIST)
        • Object Detection (Darknet)
        • ROS using RT-Thread
        • Control the car using RT-Thread
        • LiDAR via RT-Thread
        • Detection via RT-Thread and ROS
        • Sensor Driver Development Guide
Powered by GitBook

Assoc. Prof. Wiroon Sriborrirux, Founder of Advance Innovation Center (AIC) and Bangsaen Design House (BDH), Electrical Engineering Department, Faculty of Engineering, Burapha University

On this page
  • Multi-core startup
  • Multi-core Scheduling
  • SMP kernel interface
  • Migration Instructions

Was this helpful?

  1. Recommended by AIC
  2. RT-Thread University Program
  3. Kernel

RT-Thread SMP

RT-Thread SMP Introduction and Porting

PreviousAtomic OperationsNextKernel API Changelog

Last updated 7 months ago

Was this helpful?

SMP: Symmetrical Multi-Processing (SMP) refers to a group of processors (multiple CPUs) gathered on a computer, with each CPU sharing a memory subsystem and bus structure.

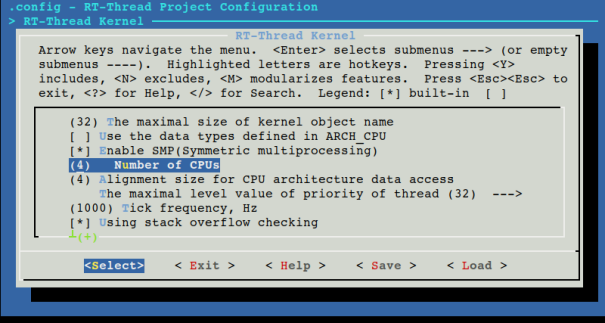

RT-Thread supports SMP since version v4.0.0, which can be enabled by enabling RT_USING_SMP on symmetric multi-core. This document mainly introduces SMP and explains how to port RT-Thread SMP.

After the system is powered on, each CPU will run independently under the control of the code in the ROM, but only the main processor (hereinafter referred to as CPU0) jumps to the initialization entry of RT-Thread, while other processors (hereinafter referred to as secondary CPUs) will be suspended in a certain state, waiting for CPU0 to wake them up.

CPU0 completes the global initialization process of RT-Thread, including peripheral initialization, interrupt distribution part initialization of interrupt controller, global variable initialization, creation of global kernel objects, etc. It also completes the hardware initialization of CPU0 itself, including MMU, CPU interface part of interrupt controller, and interrupt vector table, etc.

Finally, before executing the main thread, CPU0 wakes up other secondary CPUs and guides them to execute the secondary CPU initialization code. This code allows each secondary CPU to complete its own hardware initialization and start task scheduling.

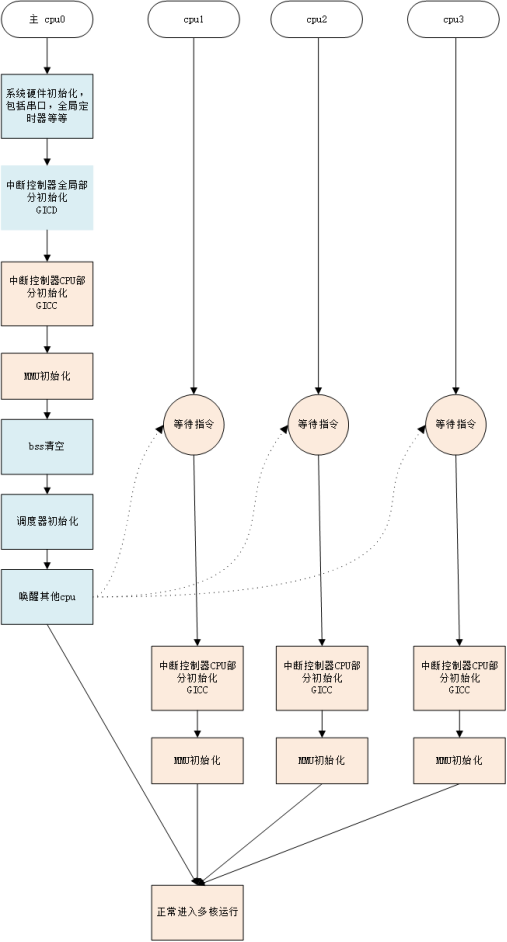

After that, the system enters the normal operation stage. The actions of each CPU during the system startup stage are shown in the following figure:

image-20210508143753591

It is worth noting that the initialization of each secondary CPU's own hardware part cannot be completed by CPU0 because its own hardware cannot be accessed by other CPUs.

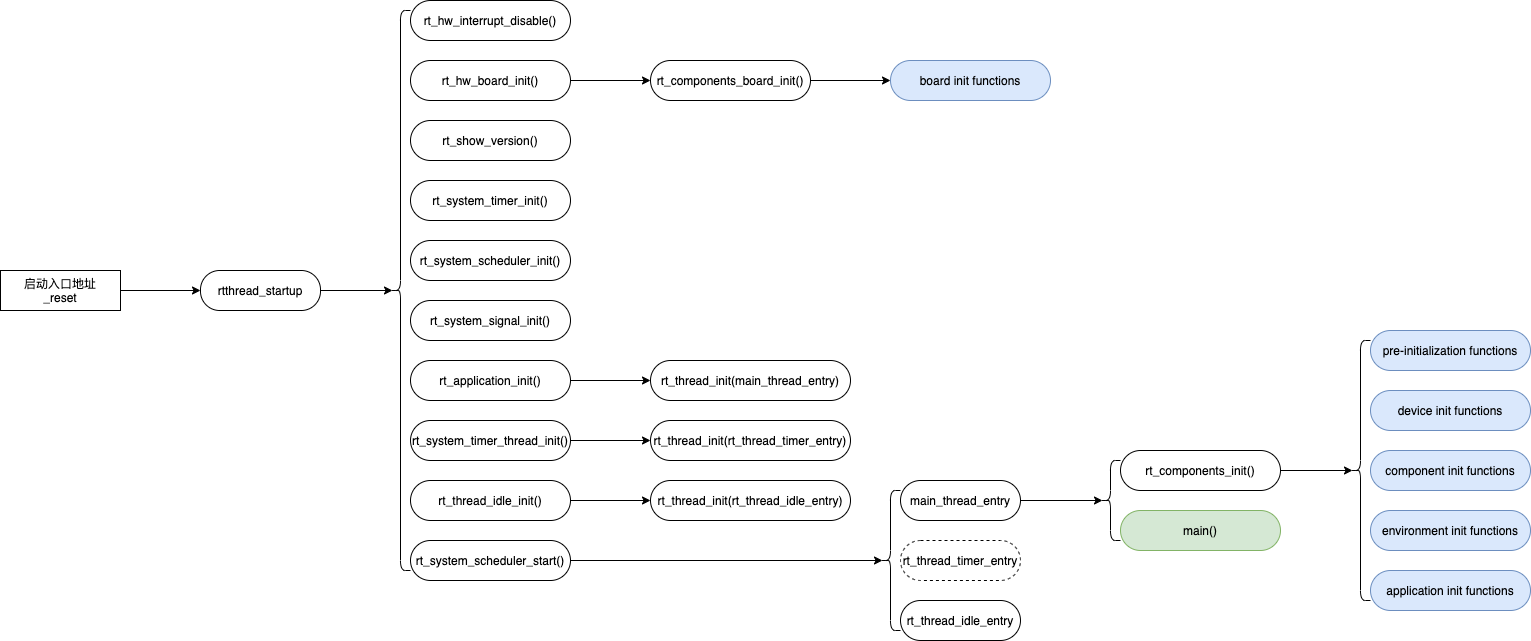

On the SMP platform, the boot process of core CPU0 is the same as the boot process on a single-core CPU. The main process is shown in the following figure:

Due to the differences in hardware platforms and compilers, the initialization code and startup process executed after the system is powered on are different, but the system ultimately calls the entry function rtthread_startup()to start RT-Thread. This function sets the hardware platform, initializes the operating system components, creates the user main thread, and finally starts the task scheduling mechanism of the current CPU to start normal work.

When the task scheduler of CPU0 is turned on, there are usually two threads on CPU0: main thread and idle thread. Users can create new threads by modifying configuration options or through the interface provided by RT-Thread. The scheduler selects the ready thread to execute based on the priority and thread status.

If the configuration option RT_USING_SMP is defined, the main thread of CPU0 will execute the function to start other CPU cores during operation rt_hw_secondary_cpu_up(). This function is provided by the kernel porting developer and performs the following two operations:

  1. Set the boot entry address of the secondary CPU;

  2. Power on the secondary CPU.

In ARMv7-A, the startup entry address of the secondary CPU is fixed to secondary_cpu_start, which is defined in the file libcpu/arm/cortex-a/start_gcc.S. The main steps include setting the kernel stack of the current CPU, establishing the MMU memory mapping table, and then jumping to the function secondary_cpu_c_start()to execute. Function secondary_cpu_c_start()is the initialization function of all secondary CPUs. It is also closely related to the hardware platform and is provided by the developer of the porting system. The following steps need to be completed:

  1. Initialize the interrupt controller of the current CPU and set the interrupt vector table;

  2. Set the timer to generate a tick interrupt for the current CPU;

  3. Acquire the kernel spin lock _cpus_lockto protect the global task table and call the function rt_system_scheduler_start()to start the task scheduler of the current CPU.

Allwinner T3 chip uses GIC interrupt controller. The system provides tick interrupt count through Generic Timer. The function secondary_cpu_c_start()code is as follows:

After each secondary CPU is started, the task with the highest priority is selected from the global task table and the local task table of the current CPU for execution. If the priorities are the same, the task in the local task table of the current CPU is selected for execution first.

In the absence of other tasks, each CPU schedules its own idle task to execute. Among them, the idle task of CPU0 executes the function in a loop rt_thread_idle_execute(), while the idle task of the secondary CPU executes the function in a loop rt_hw_secondary_cpu_idle_exec(). The latter also needs to be provided by the developer of the transplanted system. The example code is as follows:

Tasks in RT-Thread are divided into the following states:

  • Running state: the task is being executed on a CPU;

  • Ready state: The task can be executed at any time, but has not yet been assigned to the CPU, so it is waiting in a ready task table;

  • Suspended state: The task cannot be executed because the conditions are not met (waiting timeout or data arrival, etc.);

  • Closed state: The task has been deleted and is waiting to be recycled.

After entering the normal operation phase, each CPU runs interrupt processing, scheduler, and task code independently. RT-Thread has the following characteristics when running on a multi-core system:

  1. At the same time, a task (thread) will only run on one CPU;

  2. Each CPU mutually exclusively accesses the global scheduler data to determine the task to be run on the current CPU;

  3. Supports binding tasks to run on a certain CPU.

To achieve the above goals, the RT-Thread scheduler implements two ready task queues:

  1. The global ready task table rt_thread_ready_table[] contains ready tasks that are not bound to a CPU;

  2. CPU local ready task table ready_table[], one for each CPU, contains the ready tasks bound to the corresponding CPU. A typical CPU bound task is each CPU's own idle task.

When the CPU needs to switch tasks to execute, the task scheduler searches for the highest priority ready task in the system, that is, the highest priority task in the global ready task table and the local ready task table of the current CPU. In the case of the same priority, the task in the local task table is selected first.

Correspondingly, if a task changes from other states to the ready state, the following processing is performed:

  1. If it is not a CPU-bound task, it will be placed in the global ready list and an IPI (Inter-Processor Interrupt) interrupt will be sent to all other CPUs to notify them to check whether they need to switch tasks, because the priority of the current tasks of other CPUs may be lower than that of this ready task, so priority preemption will occur;

  2. If it is a CPU-bound task, check whether it has a higher priority than the current task of the corresponding CPU. If so, priority preemption occurs, otherwise it is hung in the local ready task table of the corresponding CPU. The whole process does not notify other CPUs.

To support SMP platforms, RT-Thread provides the following kernel interfaces to facilitate kernel developers to use multi-core functions.

When a task running on a single CPU changes the system state or triggers an event, it needs to notify other CPUs through an inter-processor interrupt. After receiving the signal, other CPUs call the corresponding registered routines for processing.

RT-Thread provides the following IPI interfaces:

void rt_hw_ipi_send(int ipi_vector, unsigned int cpu_mask)copymistakeCopy Success

This function is used to send the IPI signal of the specified number to the CPU set represented in the CPU bitmap.

void rt_hw_ipi_handler_install(int ipi_vector, rt_isr_handler_t ipi_isr_handler)copymistakeCopy Success

This function sets the processing function of the IPI signal with the specified number for the current CPU.

In an SMP system, each CPU maintains its own independent tick value for task execution timing and time slice statistics. In addition, CPU0 also updates the system time through tick counts and provides system timer functions, which secondary CPUs do not need to provide.

During the initialization of the secondary CPU, each CPU needs to enable its own tick timer and register the corresponding tick interrupt handler. The operation of enabling the tick timer is related to the specific hardware platform and needs to be provided by the kernel porting developer; the tick interrupt handler mainly completes two actions:

  1. Sets the state of the tick timer.

  2. Increment the current CPU tick count.

In an SMP system, disabling interrupts cannot prevent multiple CPUs from concurrently accessing shared resources, so a spin lock mechanism is needed to protect them. Similar to a mutex lock, a spin lock can have at most one holder at any time, which means that at most one execution unit can obtain the lock at any time. The difference is that for a mutex lock, if the resource is already occupied, the resource applicant can only enter a sleep state. A spin lock does not cause the caller to sleep, but instead loops and queries until the holder of the spin lock has released the lock.

RT-Thread provides a spin lock interface:

1. The following function initializes the allocated spinlock variable:

void rt_spin_lock_init(struct rt_spinlock *lock)copymistakeCopy Success

2. The following function acquires the spinlock and waits until the acquisition is successful:

void rt_spin_lock(struct rt_spinlock *lock)copymistakeCopy Success

3. The following function releases the spinlock:

void rt_spin_unlock(struct rt_spinlock *lock)copymistakeCopy Success

4. The following function prohibits the current CPU from interrupting and acquiring the spinlock, busy-waiting until the acquisition is successful, and returning the previous interrupt status:

rt_base_t rt_spin_lock_irqsave(struct rt_spinlock *lock)copymistakeCopy Success

5. The following function releases the spinlock and restores the previous interrupt status:

void rt_spin_unlock_irqrestore(struct rt_spinlock *lock, rt_base_t level)copymistakeCopy Success

Usually, the ready tasks in the system are located in the global ready task table, and each task is randomly scheduled to run on which CPU. By placing the ready tasks into a CPU's local ready task list, RT-Thread allows tasks to be bound to CPUs, that is, the task can only be run on a specified CPU.

The task binding interface provided by RT-Thread is as follows:

rt_err_t rt_thread_control (rt_thread_t thread, int cmd, void *arg)copymistakeCopy Success

When the value of the parameter cmd is RT_THREAD_CTRL_BIND_CPU, the function binds the thread thread to the CPU specified by the parameter arg.

In order to port the RT-Thread system to other SMP platforms, you need to create the corresponding BSP and write the underlying code. Here we use the Allwinner T3 chip (quad-core Cortex-A7) as a template to explain the porting steps of RT-Thread on a multi-core Cortex-A platform. Kernel developers can refer to these steps to port RT-Thread to other multi-core Cortex-A chips.

RT-Thread uses the scons tool for compilation and configuration. Taking the operating system Ubuntu 18.04 as an example to illustrate the compilation environment, the following software packages need to be installed:

  • lib32ncurses5

  • lib32z1

  • python

  • scons

  • python-pip

  • make

  • zlib1g-dev

  • binutils-arm-none-eabi

When porting to other SMP platforms, you can use the Allwinner T3 BSP as a template, copy the folder bsp/allwinner_t3/, change the name to the target platform, such as bsp/some_cortexa_smp, and keep the following files:

  • Kconfig: BSP configuration description file, used to organize BSP configuration options

  • link.lds: link file used to generate BSP executable files

  • .config: BSP configuration result file, providing default configuration options

  • SConscript: scons configuration file, together with the SConscript file in the subdirectory, records the source files to be compiled

  • SConstruct: scons configuration file, used to set up the BSP compilation environment

  • applications/main.c: provides the user code entry main function

  • drivers/:

    • board.c and board.h: Contains the initialization code on the PCB board

    • drv_clock.c and drv_clock.h: Contains the clock tree setup code

    • platsmp.c and platsmp.h: Contains the SMP startup code

Enter the BSP directory bsp/allwinner_t3 and run the command scons --menuconfigto configure the number of BSP cores. Modify the configuration options RT_CPUS_NRand change the value to the actual number of SMP cores, as shown in the following figure:

RT-Thead uses direct mapping. The kernel and all tasks share the same address space. The physical memory address and device register address space use different mapping attributes, but the mapped virtual address and physical address are consistent.

During the initialization process, the platform_mem_desc[]system sets up a unique MMU mapping table based on the array settings. Each item in the array corresponds to a description of an address mapping range, where the elements are the starting physical address, the ending physical address, the starting virtual address, and the mapping attributes.

The MMU mapping configuration array is defined in the file drivers/board.c. Taking Allwinner T3 as an example, its DDR memory start address is 0x40000000 and end address is 0xC0000000; and the device address range is from 0x01000000 to 0x40000000, so platform_mem_desc[]the content of the array is as follows:

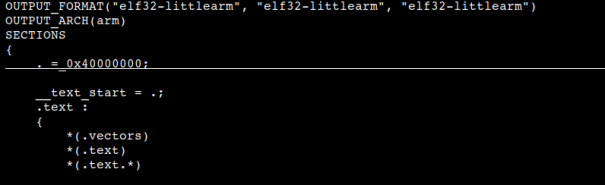

The compiled kernel image is usually loaded into the starting address of the memory for execution. The starting address used when the kernel is linked must be consistent with this value, which is determined by the link script link.lds. Taking Allwinner T3 as an example, the starting address of DDR memory is 0x40000000, so the loading address of the kernel image is also set to 0x40000000, as shown below:

When porting, modify this value to the actual loading address of the kernel image, usually the starting address of the physical memory.

According to the description of the secondary CPU startup process above, when porting RT-Thread to other ARMv7-A SMP chips, kernel developers need to provide the following three functions:

  1. rt_hw_secondary_cpu_up(),This function sets the boot entry address of the secondary CPU to secondary_cpu_start,power on and start other CPU cores;

  2. secondary_cpu_c_start(), This function is used to initialize a single secondary CPU, mainly including initializing the interrupt controller interface, setting the interrupt vector table, and the tick interrupt of the current CPU. Finally, get the kernel spin lock _cpus_lock and call the function rt_system_scheduler_start()to start the task scheduler of the current CPU;

  3. rt_hw_secondary_cpu_idle_exec(),This function is called cyclically by the idle thread of the secondary CPU and can be used to do power consumption related processing.

The above three functions are defined in the file drivers/platsmp.c. Among them, only rt_hw_secondary_cpu_up()the function implementation is closely related to the chip and needs to be provided by the porter according to the chip characteristics. If the chip does not use the GIC interrupt controller and Generic Timer, the function also needs to be re-implemented secondary_cpu_c_start().

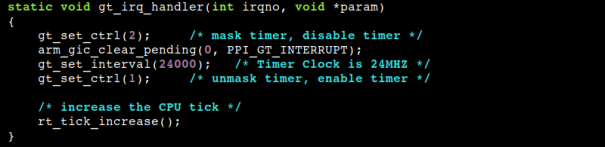

It should be noted that on the Allwinner T3 platform, the operating frequency of the Generic Timer is 24 MHZ, and the tick frequency is 1000, so the interrupt interval register CNTP_TVALis set to 24M / 1000 = 24000. In the tick interrupt processing code, the interval register needs to be reset, and the code is as follows:

This value is reset each time a tick interrupt is triggered. For the interrupt handling code, see the description of OS tick above. If the operating frequency of the target platform is inconsistent with the above value, modify the function gt_set_interval()parameters to set it.
