Advance Innovation Centre
  • AIC Knowledge @ EEC for All
  • 😎Logical Thinking
    • Karel Robot
    • Code to Flowchart
    • Play with Docker
    • CNX Software
  • MCU & Interfacing with Infineon PSOC™
    • Basic MCU Interfacing
      • Introduction to CY8CKIT-062S2-43012 Pioneer Kit
      • Development Environment Preparation
      • PSoC™ 6S2 Peripherals Interfacing (GPIO)
        • Hello World and LED Blinking
        • GPIO Principles
        • PSoC™ 6S2 GPIO-HAL LED Blink Lab
        • PSoC™ 6S2 GPIO-PDL LED Blink Lab
        • Button "Bounce" Principles
          • Push/Pull Button to Turn ON/OFF LED via HAL
          • Push/Pull Button to Turn ON/OFF LED via PDL
          • GPIO Button Interrupt via HAL
          • GPIO Button Interrupt via PDL
        • GPIO variables & functions
      • PSoC™ 6S2 Peripherals Interfacing (ADC, PWM)
        • PSoC™ 6S2 SAR ADC
          • ADC Principles
          • PSoC™ 6S2 with ADC Labs
            • Reading potentiometer sensor value via an ADC HAL
            • Reading potentiometer sensor value via an ADC PDL
        • PSoC™ 6S2 PWM & TCPWM
          • PWM Principles
          • PSoC™ 6S2 for PMW Function Labs
            • LED Brightness using PWM via HAL
            • LED Brightness using PWM via PDL
    • Sensor Interfacing and HMI
      • OLED Display
        • OLED Display Principles
        • Calling BDH’s OLED functions
        • Display ADC via Potentiometer on OLED
      • BDH Shell
        • Shell Principles
        • LED Blinking and CAPSENSE via BDH Shell
        • Adding "History" command
        • Adding "Reboot" command
        • CAPSENSE Button and Slider
          • CAPSENSE Button and Slider with Capsense Tuner
          • CAPSENSE Button and Slider using FreeRTOS
    • Serial Communication & Visualization
      • UART, I2C, SPI Communication via Infineon PSoC™6
      • BMX160 Sensor Communication via Infineon PSoC™6
        • Reading ADC via HAL with Potentiometer and Displaying GUI on Serial Studio
        • Reading XENSIV-DPS-3XX Pressure Sensor and Displaying GUI on Serial Studio
        • Motion Sensors GUI Integration via Serial Studio
    • IoT Connectivity & Data Analytics via Node-Red
      • Node-Red Installation
      • Setting MQTTS to MQTT Broker
      • Sending PSoC6’s sensor to MQTT (node-red)
    • Edge AI on PSoC™
      • Machine Learning on PSoC™6 via Edge-Impulse
    • Infineon PSoC™ Troubleshooting
  • IoT Development with Infineon PSOC™ & BDH Platform
    • PSoC™ IoT Development Kit
      • Introduction to CY8CKIT-062S2-43012 Pioneer Kit
      • Development Environment Preparation
        • Hello World and LED Blinking
    • IoT Connectivity
      • Node-Red Installation
      • Controlling PSoC™ LED using MQTT
      • Setting MQTTS to MQTT Broker
      • Sending PSoC6’s sensor to MQTT (node-red)
    • BDH IoT Connectivity
    • WireLinX™ IoT PLC
    • BDH X-Brain Data Analytics
      • PSoC6 Data Collection to CSV log file
    • Data Visualization
      • สร้าง Dashboard ด้วย Looker Studio
  • 🖥️Operation Systems
    • Prerequisites
      • Guideline from Ubuntu
        • Ubuntu and VSCode on WSL2
      • ติดตั้ง WSL 2
      • Run Ubuntu on VirtualBox7
    • Zero to Linux Hero
      • Computer OS Architecture
      • Anatomy of Linux System
        • UNIX/Linux History
        • UNIX/Linux Evolution
        • GNU Project
        • Linux OS Architecture
        • Command Line Interface (CLI)
          • Basic Commands
          • 😎Level up your Linux Shell
          • File & Dir. Commands
          • Searching Commands
          • 😎ChatGPT-based Terminal
          • SysAdmin Commands
          • Network Commands
          • Hacker Commands
        • Busybox
        • Shell Script
          • Awk Script
          • Bash Shell Script
            • Bash Snippets
            • Bash Useful Examples
      • Anatomy of Linux Kernel
        • Linux Kernel Principles
        • Linux Environment for Developer
      • Anatomy of Embedded Linux
        • Embedded Linux
        • Host & Target
        • Cross Toolchains
        • Bootloader
        • Building Embedded Linux
    • Linux OS Dev. Engineer
      • Process Management
        • Process Basic
        • Process State
        • Basic Process Mgmt. Commands
        • Advance Process Mgmt. Commands
        • Process API Programming
      • IPC
        • IPC Anatomy
        • Signal Programming
        • Pipe Programming
        • FIFO Programming
        • Msg. Queue Programming
          • System V
        • Share Memory Programming
          • System V
        • Socket Programming
      • POSIX Threads
        • Multi-tasking Basic
        • POSIX Thread Anatomy
        • Threading Programming
      • Applied IPC
        • Remote Commander
        • Multi-Remote Commanders
      • Process Synchronization
        • Mutex Programming
        • Semaphore Programming
      • Applied IPC with Semaphore
  • ⌚Embedded Systems Development
    • Introduction to ESD
      • Why's ESD?
      • What it use for?
      • How it works?
    • Enbedded System Development via PSoC6
      • Basic MCU Interfacing
        • Introduction to CY8CKIT-062S2-43012 Pioneer Kit
        • Development Environment Preparation
        • PSoC™ 6S2 Peripherals Interfacing (GPIO)
          • Hello World and LED Blinking
          • GPIO Principles
          • PSoC™ 6S2 GPIO-HAL LED Blink Lab
          • PSoC™ 6S2 GPIO-PDL LED Blink Lab
          • Button "Bounce" Principles
            • Push/Pull Button to Turn ON/OFF LED via HAL
            • Push/Pull Button to Turn ON/OFF LED via PDL
            • GPIO Button Interrupt via HAL
            • GPIO Button Interrupt via PDL
          • GPIO variables & functions
        • PSoC™ 6S2 Peripherals Interfacing (ADC, PWM)
          • PSoC™ 6S2 SAR ADC
            • ADC Principles
            • PSoC™ 6S2 with ADC Labs
              • Reading potentiometer sensor value via an ADC HAL
              • Reading potentiometer sensor value via an ADC PDL
          • PSoC™ 6S2 PWM & TCPWM
            • PWM Principles
            • PSoC™ 6S2 for PMW Function Labs
              • LED Brightness using PWM via HAL
              • LED Brightness using PWM via PDL
      • Sensor Interfacing and HMI
        • OLED Display
          • OLED Display Principles
          • Calling BDH’s OLED functions
          • Display ADC via Potentiometer on OLED
        • BDH Shell
          • Shell Principles
          • LED Blinking and CAPSENSE via BDH Shell
          • Adding "History" command
          • Adding "Reboot" command
          • CAPSENSE Button and Slider
            • CAPSENSE Button and Slider with Capsense Tuner
            • CAPSENSE Button and Slider using FreeRTOS
      • Serial Communication & Visualization
        • UART, I2C, SPI Communication via Infineon PSoC™6
        • BMX160 Sensor Communication via Infineon PSoC™6
          • Reading ADC via HAL with Potentiometer and Displaying GUI on Serial Studio
          • Reading XENSIV-DPS-3XX Pressure Sensor and Displaying GUI on Serial Studio
          • Motion Sensors GUI Integration via Serial Studio
    • Edge Computing and IoT Connectivity
    • Cloud-Based Data Analytics and Digital Twin
    • Edge Vision AI
    • Resources
      • Basic Hardware and Firmware
        • Environment Preparation
          • การติดตั้งโปรแกรม Arduino IDE
            • ตัวอย่างการเริ่มต้นใช้งาน Arduino IDE
          • การติดตั้งโปรแกรมสำหรับใช้งานเครื่องมือวัด NI MyDAQ
            • ตัวอย่างการตั้งค่าใช้ Digital Multimeter -NI ELVISmx
            • ตัวอย่างการตั้งค่าใช้ Oscilloscope-NI ELVISmx
          • ติดตั้งโปรแกรม KingstVIS
        • Basic measurement
          • Basic Digital and Analog I/O
            • LAB: Basic Digital Input/Output
            • LAB: Basic Analog Input/Output
          • Waveform
            • LAB: Oscilloscope
            • LAB: Oscilloscope and Function Generator
            • LAB: Pulse Width Modulation (PWM)
              • Homework
        • Interfacing and Communication
          • LAB: UART, RS485, RS232 Protocol
          • LAB: I2C Protocol
            • HOMEWORK
          • LAB: SPI Protocol
      • IoT Connectivity
        • Example: IoT with MQTT on Node-red
        • Data logger
        • LAB: Data Visualization
  • 🛠️C/C++ for Embedded Programming
    • Development Environment Preparation
      • ติดตั้ง WSL 2
      • ติดตั้ง Ubuntu environment
      • ติดตั้งโปรแกรม Visual Studio Code
      • การเชื่อมต่อ Virtual studio code เข้ากับ WSL
      • ติดตั้ง docker on WSL
    • Principle C/C++ Programming
      • Get started with C++
      • Makefile
        • Makefile Examples
      • Compiling and running
        • How to create a program that you can enter inputs.
          • Lab 1 Exercise
      • Arguments
        • Command line arguments in C and C++
      • signed and unsigned data types
      • Variable and Operator
      • If and If else
      • Loop, Infinite loop, and flag
        • Loop and Flag exercise
      • Array
        • Get to know with arrays
        • Implement example
      • Vector
    • Object Oriented Programming (OOP) in C++
      • Class and Object
      • Encapsulation and Abstraction
      • Polymorphism and Inheritance
    • C/C++ Preprocessing
      • Macro
        • Quiz Macro
      • File Inclusion
      • Conditional Compilation
      • Pragma directive
        • Quiz Pragma
    • String in C++
      • Concatenation
      • Split
    • Type conversions for C/C++
      • Conversion using Cast operator
    • Error handling
    • Data logger
      • การสร้างไฟล์และเขียนไฟล์
      • การอ่านไฟล์
      • การเก็บข้อมูลกับTime stamp
    • High performance programing
      • Multi-task and Multi-thread
        • Multi-threading example
      • Mutex
      • Queue
      • OpenCV
    • C/C++ Techniques
      • Makefile in action
      • Object Oriented Programming (OOP) in C++
        • Class and Object
        • Encapsulation and Abstraction
        • Polymorphism and Inheritance
      • C/C++ Preprocessing
        • Macro
          • Quiz Macro
        • File Inclusion
        • Conditional Compilation
        • Pragma directive
          • Quiz Pragma
      • Binary, Octal and Hexadecimal Numbers
      • Array and properties of an array
        • Get to know with arrays
        • Implement example
      • What's next?
  • 🤖Artificial Intelligence (AI)
    • VAMStack Design House, BUU
    • Data Analytics
      • Data cleansing
      • Data analytics
      • Data analytic exercise
    • Machine Learning
      • Neural Network Layers
      • Machine learning type
      • Dataset
      • Using Edge Impulse for AI Model
    • Basic Image Processing
      • Computer Vision using Python Language
        • Installation
        • Computer Vision Basics
          • Pixel and Color
          • Draw image
          • Basic Image processing
          • Morphology Transformations
          • Gaussian blur
          • Simple Thresholding
          • Contour
          • Canny edge detection
        • Case Study
          • Coin counting
          • Color detection & tracking
        • VAM_CV SDK
  • ⚙️FPGA Design and Development
    • Verilog HDL via Vivado IDE
      • LAB1: Setting Environment and Create Project
        • Create Vivado Project
      • LAB2: Hardware Description Language Work Flow
        • Simulation code
      • LAB3: Design HDL Project
        • Top Level Design
        • Top-level Simulation
      • LAB4: Asynchronous VS Synchronous Circuit
        • Simulation Synchronous counter
    • C/C++ Programming on Ultra96v2 FPGA Board
      • Application C/C++ on Ultra96v2 Part 1
        • Design Overview
        • Step 1 - Burn the image to SD card
        • Step 2 - Bring up Ultra96v2
        • Step 3 - Installing the Vitis-AI runtime packages
      • Application C/C++ on Ultra96v2 Part 2
        • STEP 1 : Setting auto boot Wifi
        • STEP 2 : How to working on Embedded
        • STEP 3 : How to run the test code
  • 🤖Robotics
    • Dobot Magician
      • Instruction of Dobot
      • Software Download
      • Basically of Program
        • Teaching and Playback
        • Write and Draw
        • LaserEngraving
        • 3D Printer
    • Robotino
      • Software Download
        • Robotino View
        • Robotino SIM
      • Charging
      • Connecting
      • Follow Line example
        • Basic block in Follow Line
    • RaspBlock
      • Get Started with Raspblock
  • 🚩Special Topics
    • Node-Red
      • Set up Raspberry Pi
      • Install node red in Raspberry Pi
      • Get started with Node Red
        • Open node-red
        • Turn off node red
        • Install Dashboard on Node-red
        • Use node red to show message
        • Using Ultrasonic sensor with node-red
    • IoT Cloud
      • Overview
        • How do they work?
          • Basic Knowlege
      • Installations
        • Install Docker
        • Install Mosquitto Broker
        • Install InfluxDB
        • Install Telegraf
        • Install Grafana
      • Get Sensor Value and Send to MQTT
        • Connect ESP3266 to sensor
        • Connect ESP3266 to MQTT
      • Integration
    • Senses IoT
      • SENSES IoT Platform
      • LAB8: MCU send data to IoT platform
    • CrowPi Dev Kit
      • Raspberry Pi with CrowPi
      • Remote to Raspberry Pi
      • Cross-Compile
        • Lab 1: Programming and cross complier
      • Hardware and Interfaces Usage CLI
        • LAB: Usage GPIO via CLI
        • LAB: Scan I2C bus via CLI
      • Python library for Crow Pi
      • wiringPi library (C) for CrowPi
        • Lab2: Crowpi and sensors
    • LVGL Development
      • LVGL - Light and Versatile Embedded Graphics Library
        • Setting program for LVGL Simulator
        • Get started with LVGL simulator
        • Example Library of LVGL
        • Create your own screen
          • Exercise
        • Style
          • Exercise
        • Event
    • Docker OS
      • Docker OS Part 1
        • Part 1 : Installation
        • Part 2 : Basic Docker OS and Linux CLI
      • Docker OS Part 2
        • Part 1 : Docker communication
        • Part 2 : Docker compose
      • Application Gstreamer on devcontainer
        • STEP 1 : Setting gstreamer environment
        • STEP 2 : Create the Gstreamer element on template
        • STEP 3 : Testing and application on your gst element
  • 🤟Recommended by AIC
    • Skill Roadmap
      • Embedded Engineer
      • Developer
    • Hardware Programming
    • Embedded Programming
    • General-propose Programming
    • Algorithmica
    • Thai Expert Knowledge
    • RT-Thread University Program
      • Infineon PSoC6
      • Kernel
        • Kernel Basics
        • Thread Management
        • Clock Management
        • Inter-thread synchronization
        • Inter-thread communication
        • Memory Management
        • Interrupt Management
        • Kernel porting
        • Atomic Operations
        • RT-Thread SMP
        • Kernel API Changelog
      • Tools
      • Devices & Drivers
        • SENSOR Devices
        • Touch Equipment
        • CRYPTO Devices
        • AUDIO Devices
        • Pulse Encoder Devices
      • Components
        • C Library (libc)
        • ISO/ANSI C Standard
        • POSIX Standard
          • FILE (File IO)
          • Pthread
          • Timer
          • IPC Semaphore
          • IPC Message Queues
          • Dynamic Modules
        • Network Components
          • FinSH Console
          • FAL: Flash Abstraction Layer
          • Virtual File System
          • tmpfs: temporary file system
          • ulog log
          • utest testing framework
          • Power Management
          • RT-Link
        • Software Packages
          • Internet of Things
            • MQTT-umqtt
            • Telnet
          • Tools
            • SystemView
            • SEGGER_RTT
          • LVGL Manual
            • Touch Screen Driver
      • Demo
        • Infineon Gateway
        • Handwriting Recognition (MNIST)
        • Object Detection (Darknet)
        • ROS using RT-Thread
        • Control the car using RT-Thread
        • LiDAR via RT-Thread
        • Detection via RT-Thread and ROS
        • Sensor Driver Development Guide
Powered by GitBook

Assoc. Prof. Wiroon Sriborrirux, Founder of Advance Innovation Center (AIC) and Bangsaen Design House (BDH), Electrical Engineering Department, Faculty of Engineering, Burapha University

On this page
  • How it works
  • Introduction to service concept
  • Usage Guidelines
  • Configuring RT-Link Components
  • Introduction to upper layer application interface
  • Introduction to the underlying link connection interface
  • Sample Code

Was this helpful?

  1. Recommended by AIC
  2. RT-Thread University Program
  3. Components
  4. Network Components

RT-Link

PreviousPower ManagementNextSoftware Packages

Last updated 7 months ago

Was this helpful?

RT-Link is an open link layer transmission protocol. It is designed to achieve stable, secure and efficient point-to-point data transmission between devices, and has a simple interface and is easy to use.

Directory structure:

rtthread
└───components
    └───utilities
        └───rt-link
            ├───inc        // 头文件
            ├───src        // rtlink源码文件
            ├───Kconfig
            └───SConscriptcopymistakeCopy Success

Features:

  • Stability : RT-Link has a series of capabilities such as data retransmission, frame sequence number check, and state synchronization to ensure stable transmission;

  • Security : Supports CRC verification and uses Ethernet verification protocol;

  • Efficient : The protocol header is very concise, only 4 bytes, and every bit has practical significance;

  • Open : It has a unified operation API and supports multiple underlying hardware interfaces, such as UART, SPI, and USB.

  • Easy to use : The API is simple and can easily integrate RT-Link into existing applications, with good portability and compatibility.

The overall framework of RT-Link is as follows:

  • The top layer is the service layer , which supports multiple services running on one device at the same time, and the bottom layer uses the same data communication port;

  • The second layer is the rt-link transport layer , which implements the core functions of rt-link and is used to ensure the reliability and stability of data transmission functions;

  • The third layer is the rt-link_hw port docking layer , which is used to connect to the underlying data transmission port;

  • The lowest layer is the transmission port layer of the device , which is the communication port that actually transmits data, such as UART, SPI, Network, etc.

There can be multiple services in rt-link. For upper layer applications, each service represents a transmission channel, and there can be no association between services. Each service has an independent structure object. For ease of understanding, only the service structure object and related parameter definitions are listed here. Other contents can be rt-link.hviewed in the header file. The relevant attributes are as follows:

/* service 结构体对象 */
struct rt_link_service
{
    /* 发送超时时间 */
    rt_int32_t timeout_tx;
    /* 发送结果回调 */
    void (*send_cb)(struct rt_link_service *service, void *buffer);
    /* 数据接收回调 */
    void (*recv_cb)(struct rt_link_service *service, void *data, rt_size_t size);
    void *user_data;

    rt_uint8_t flag;             /* 传输质量标志:是否使用 CRC 和 ACK */
    rt_link_service_e service;     /* service 类型标识 */
    rt_link_linkstate_e state;   /* 通道链接状态 */
    rt_link_err_e err;             /* 错误码 */
};copymistakeCopy Success

timeout_tx blocking/non-blocking send

rt-link provides two data transmission modes: blocking transmission and non-blocking transmission . timeout_tx can be configured using RT_WAITING_FOREVER(blocking) or (non-blocking) during initialization .RT_WAITING_NO

In blocking mode, if you need to configure a certain timeout, you can also configure a specific timeout for timeout_tx. The unit of this value is tick (system clock). In order to prevent a service from occupying the data transmission channel for a long time, there will be a maximum timeout in rt-link. Therefore, in blocking transmission mode, the smaller timeout will be used as the final transmission timeout.

send_cb data sending callback

In non-blocking mode, send_cb will send a callback notification after the sending is completed, regardless of whether the sending result is "successful" or "failed". The specific sending result can be viewed in the err error code in the structure object.

It should be noted that after calling the send interface in non-blocking mode , the data address space to be sent will be temporarily used by rt-link. The service application should not release or modify the data in this space until it receives the notification from send_cb and then operates the data address space.

recv_cb data receiving callback

The service receives data by registering a callback. The data space for receiving data is dynamically requested by rt-link. The service application gets the data space address and size in the callback interface. The subsequent use and release of this space needs to be managed by the service application .

flag Transmission quality flag

In rt-link, you can configure the data transmission quality of the service channel. There are two main configurable items: RT_LINK_FLAG_ACKand RT_LINK_FLAG_CRC.

When the ACK function is enabled, the data sent by the service channel will have an ACK response to confirm that the other end has successfully received it, and the retransmission function will also be enabled .

If you disable the ACK function, the ACK response and timeout retransmission functions will also be disabled. Enabling or disabling only affects this service channel.

When the CRC function is enabled, the sender will calculate the CRC before sending data and fill it at the end of a data frame. After receiving the data, the receiver will calculate and verify the other parts except CRC.

Disabling the ACK and CRC functions can improve transmission efficiency to a certain extent, but the corresponding data transmission quality needs to be guaranteed by the actual data transmission channel.

service type flag

Each service object has an independent service channel identifier, and the service type is defined in rt_link_service_e. During initialization, you need to rt_link_service_eselect a type from and configure it to the service structure object.

state Connection status

state marks the connection status of the service channel, which is divided into the following three connection states:

type

significance

illustrate

RT_LINK_INIT

initialization

The status of the service when it is initialized

RT_LINK_DISCONN

Disconnection

The peer's detached state indicates that the peer's service is offline.

RT_LINK_CONNECT

Connection successful

The status after the peer is attached, indicating that the peer service is online

err error code

In the service structure object, err marks the error type of the last operation. In the current version, it mainly refers to errors that occur during data transmission. The meanings of the error codes used are as follows:

type

illustrate

RT_LINK_EOK

success

RT_LINK_ERR

Common error, usually due to interface parameter problems

RT_LINK_ETIMEOUT

Data sending timeout

RT_LINK_ENOMEM

Insufficient memory, the sent data is too long or the memory space is insufficient

RT_LINK_EIO

The underlying IO error, the underlying port sending failed

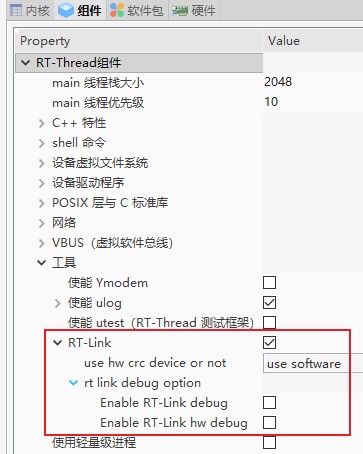

Here we take studio as an example, find Components -> Tools -> RT-Link on the configuration page, select Enable and configure, as shown below.

  • Configure the CRC calculation method. The software CRC function is already included in RT-Link. The hardware CRC needs to be connected to the relevant interface according to different platforms.

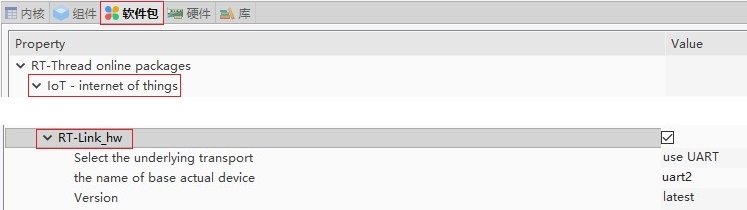

  • Save the settings and you can add RT-Link to the current project. The DEBUG option can be enabled according to debugging needs and is disabled by default.

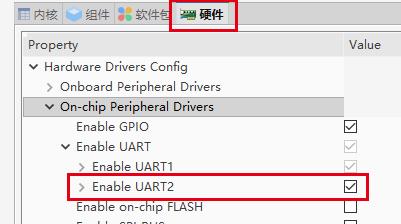

  • One more thing, don't forget to open the hardware interface you want to use, here I use UART2;

The upper-layer application interface list is shown below, and these interfaces will be introduced in the subsections.

/* rtlink init and deinit */
int rt_link_init(void);
rt_err_t rt_link_deinit(void);
/* rtlink send data interface */
rt_size_t rt_link_send(struct rt_link_service *service, const void *data, rt_size_t size);
/* rtlink service attach and detach */
rt_err_t rt_link_service_attach(struct rt_link_service *service);
rt_err_t rt_link_service_detach(struct rt_link_service *service);copymistakeCopy Success
int rt_link_init(void);copymistakeCopy Success

The default is automatic initialization. You can decide whether to enable automatic initialization based on the specific application. If you need to disable automatic initialization, you can rtlink.hcomment out the macro definition inRT_LINK_AUTO_INIT

Return Value

describe

RT_EOK

Initialization successful

-RT_ENOMEM

Insufficient memory, space application failed

-RT_ERROR

Initialization failed

rt_err_t rt_link_deinit(void);copymistakeCopy Success

When RT-Link is not needed, you can execute rt_link_deinit()to release system resources.

Return Value

describe

RT_EOK

Deinitialization successful

rt_err_t rt_link_service_attach(struct rt_link_service *service);copymistakeCopy Success

parameter

describe

service

The service object to be registered, parameter typestruct rt_link_service*

Return Value

--

RT_EOK

Successful registration

-RT_EINVAL

Parameter error

struct rt_link_serviceThe meaning of each member variable in the structure has been explained in the [Introduction to the service concept](#Introduction to the service concept) section .

Example:

static void send_cb(struct rt_link_service *service, void *buffer)
{
    LOG_I("send_cb: service (%d) buffer (0x%p) err(%d)", service->service, buffer, service->err);
}

static void recv_cb(struct rt_link_service *service, void *data, rt_size_t size)
{
    LOG_I("service (%d) size (%d) data(0x%p)", service->service, size, data);

    if (size)
    {
        LOG_HEX("example",8,data,size);
        rt_free(data);
    }
}

static struct rt_link_service serv_socket;
int rtlink_exinit(void)
{
    serv_socket.service = RT_LINK_SERVICE_SOCKET;
    serv_socket.timeout_tx = RT_WAITING_FOREVER;
    serv_socket.flag = RT_LINK_FLAG_ACK | RT_LINK_FLAG_CRC;
    serv_socket.recv_cb = recv_cb;
    serv_socket.send_cb = send_cb;
    rt_link_service_attach(&serv_socket);
}copymistakeCopy Success
rt_err_t rt_link_service_detach(struct rt_link_service *service);copymistakeCopy Success

parameter

describe

service

The service object to be removed, parameter typestruct rt_link_service*

Return Value

--

RT_EOK

Removed successfully

-RT_EINVAL

Parameter error

rt_size_t rt_link_send(struct rt_link_service *service, const void *data, rt_size_t size);copymistakeCopy Success

parameter

describe

service

service structure object

data

Data sent

size

The length of the data

Return Value

--

0

Send failed

size

The length of the data sent

The underlying link docking interface is defined in rtlink_port.hand needs to be implemented when docking the underlying transmission port.

/* 需要在传输端口中实现的功能 */
rt_err_t rt_link_port_init(void);
rt_err_t rt_link_port_deinit(void);
rt_err_t rt_link_port_reconnect(void);
rt_size_t rt_link_port_send(void *data, rt_size_t length);
/* 当接收到数据并将数据传输到RTLink时调用 */
rt_size_t rt_link_hw_write_cb(void *data, rt_size_t length);copymistakeCopy Success
int rt_link_port_init(void);
int rt_link_port_deinit(void);copymistakeCopy Success

It is mainly used to initialize the resources of the underlying port. It will be called when RT-Link is initialized and deinitialized. This part needs to be implemented by yourself during porting. For UART, SPI, etc., the relevant interfaces provided by the device framework can be used in RT-Thread.

rt_size_t rt_link_port_send(void *data, rt_size_t length);copymistakeCopy Success

This function will be called by the core logic of RT-Link to send data through the actual underlying port. For simple interfaces such as UART , data can be sent directly without affecting the operation of the system. For more complex communication interfaces such as SPI, USB , etc., the sending logic can be implemented through mechanisms such as events and mailboxes.

parameter

describe

data

Data sent

length

The length of the data

Return Value

--

0

Send failed

length

The length of the data sent

rt_err_t rt_link_port_reconnect(void);copymistakeCopy Success

The function of the reconnection interface is that when rt_link_port_send() fails to send, rt-link will call this interface to try to reconnect the underlying link, and call rt_link_port_send() again to try to send data. For example, if the underlying data link uses a TCP network, if the TCP connection is abnormally disconnected, TCP reconnection can be performed in this interface.

rt_size_t rt_link_hw_write_cb(void *data, rt_size_t length);copymistakeCopy Success

When the underlying interface receives data, this function can be directly called to send data to RT-Link and provide the received data to the upper layer service. This function can be directly called in an interrupt.

parameter

describe

data

Data written

length

The length of the data

Return Value

--

0

Write failed

> 0

The actual length of the data written

#include <rtthread.h>
#include <rtlink.h>

#define DBG_ENABLE
#define DBG_TAG "rtlink_exam"
#define DBG_LVL DBG_LOG
#include <rtdbg.h>

#define TEST_CONTEXT    "This message is sent by RT-Link"

static struct rt_link_service serv_socket;

static void send_cb(struct rt_link_service *service, void *buffer)
{
    LOG_I("send_cb: service (%d) buffer (0x%p) err(%d)", service->service, buffer, service->err);
}

static void recv_cb(struct rt_link_service *service, void *data, rt_size_t size)
{
    LOG_I("service (%d) size (%d) data(0x%p)", service->service, size, data);

    if (size)
    {
        LOG_HEX("example",8,data,size); /* 使用此接口打印 16 进制数据需要开启 ulog 组件*/
        rt_free(data);/* data 指向的空间由 rtlink 动态申请,应用层使用完毕后自行释放 */
    }
}

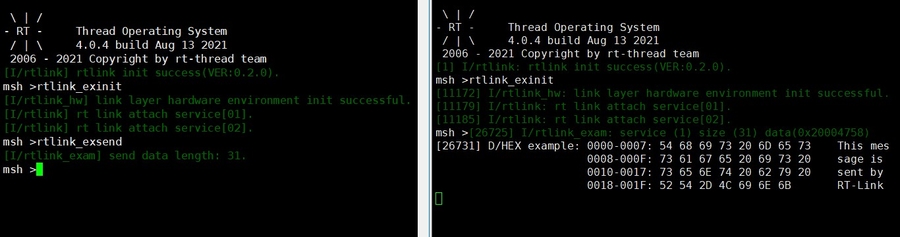

static int rtlink_exsend(int argc, char **argv)
{
    char *data = RT_NULL;
    rt_size_t length = 0;

    if (argc == 1)
    {
        data = rt_malloc(sizeof(TEST_CONTEXT));
        rt_memcpy(data, TEST_CONTEXT, sizeof(TEST_CONTEXT) - 1);
        length = rt_link_send(&serv_socket, data, sizeof(TEST_CONTEXT) - 1);
        LOG_I("send data length: %d.", length);
        rt_free(data);
    }
    return 0;
}
MSH_CMD_EXPORT(rtlink_exsend, rt link layer send test);

int rtlink_exinit(void)
{
    /* service 结构体对象初始化 */
    serv_socket.service = RT_LINK_SERVICE_SOCKET;
    serv_socket.timeout_tx = RT_WAITING_FOREVER;
    serv_socket.flag = RT_LINK_FLAG_ACK | RT_LINK_FLAG_CRC;
    serv_socket.recv_cb = recv_cb;
    serv_socket.send_cb = send_cb;
    rt_link_service_attach(&serv_socket);
    return RT_EOK;
}
MSH_CMD_EXPORT(rtlink_exinit, rt link example init);copymistakeCopy Success

rtlink overall framework

settings

software package in the software package , software package -> iot -> rt-link_hw. For a detailed introduction to the software package, see README;

rt-link_hw

UART is selected here, and you need to configure the device name and the hardware interface used. If you need to add other ports, you can view ;

uart

Here we select two Pandora development boards to test the running effect. There is at the end of the document . The running effect is as follows:

🤟
