# Neural Network Layers

การทดลองนี้จะปูพื้นฐานความเข้าใจการทำงานของ AI พื้นฐานและการเริ่มต้นทำความเข้าใจการฝึกสอน AI เพื่อเป็นพื้นฐานในคาบต่อๆไป

<figure><img src="/files/xkmPVAy75CQ6Qr8rGWgf" alt=""><figcaption></figcaption></figure>

## Introduction&#x20;

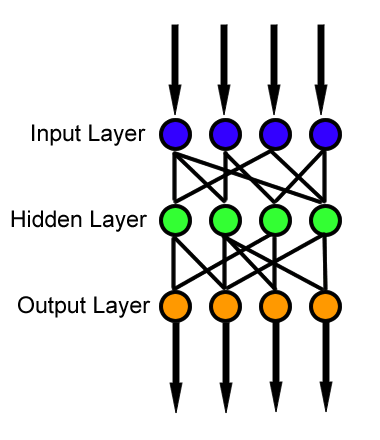

เริ่มทำการปูพื้นฐานเพิ่มความเข้าใจจาคาบที่แล้วกันก่อนในเรื่องของ AI และกระบวนการคิดและการตัดสินใจของ AI ก่อนที่จะทำการทำการแปลงความเข้าใจให้เป็นโค้ดภาษา C จากคาบที่แล้วเราได้รู้จัก AI และประเภทของ AI กันไปแล้ว วันนี้เราจะมาทำความเข้าใจกันในส่วนที่หลายคนอาจสงสัยว่าไอเจ้าก้อนกลมๆที่ยึดโยงกันเป็นโครงข่ายประสาทมันทำงานยังไงเพื่อให้สามารถนำไปต่อยอดงานอื่นๆในอนาคตได้  การทำงานของตัว AI ที่เป็น machine learning หรือ deep learning นั้นจะแตกต่างกันเพียงจำนวนของ hidden layer เท่านั้น ซึ่ง deep learning จะมี hidden layer มากกว่า 2 layer ขึ้นไปโดยจะมีองค์ประกอบดังนี้

<figure><img src="/files/5PbFpDcE5lwWzXJNV3QN" alt=""><figcaption></figcaption></figure>

1. Input layer เป็นชั้นของการรับข้อมูลที่ทำการป้อนเพื่อให้ AI ทำการตัดสินใจหรือเป็นการฝึกสอนให้ AI เข้าใจในสิ่งที่เราสอน
2. Hidden layer เป็นชั้นของการวิเคราห์ข้อมูลซึ่งอาจจะมีการจัดการหรือเตรียมข้อมูลเช่น resize หรือ sorting data เพื่อนำไปทำการ Convolution ในการช่วยให้สามารถตัดสินใจได้ดีขึ้น
3. Output layer เป็นชั้นของการนำข้อมูลที่ผ่านการประมวลผลแล้วไปทำงานในส่วนอื่นต่อ

\
ซึ่งการทำงานเป็นแต่ละ layer แบบนี้เป็นการทำงานในส่วนของ AI ในปัจจุบันโดยจะมีการเติมฟังก์ชั้นที่ช่วยในการจัดการข้อมูล หรือช่วยในการประมวลผลได้ดีขึ้นทั้งในส่วนของชั้นประมวลผล เช่น [Conv](https://machinelearningmastery.com/convolutional-layers-for-deep-learning-neural-networks/), [Gaussian](https://arxiv.org/abs/1904.04620) และชั้นของการนำไปใช้งานต่อ เช่น [Softmax](https://en.wikipedia.org/wiki/Softmax_function),[ReLu](https://machinelearningmastery.com/a-gentle-introduction-to-sigmoid-function/) เป็นต้น&#x20;

\

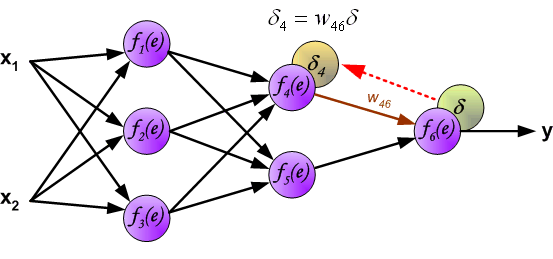

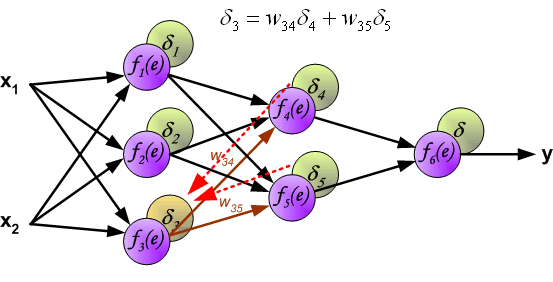

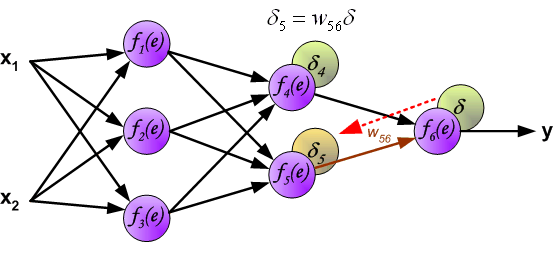

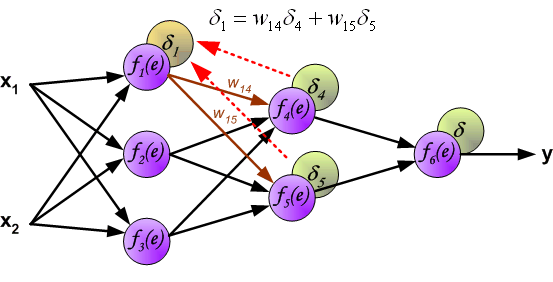

แต่ก่อนอื่นจะมาทำความเข้าใจพื้นฐานของแต่และเจ้าเม็ดกลมๆ ว่ามันเรียนรู้ยังไงทำไม ซึ่งมันคิดได้เพียงแบบเป็นเหตุเป็นผล ไม่สามารถคิดสร้างสรรค์ได้เหมือนมนุษย์ เพราะว่าพื้นฐานของตัวเจ้าเม็ดกลมๆที่ต่อกันหรือ multi-layer Neural network นั้นมีสิ่งที่เรียกว่า “Backpropagation” โดยเราจะใช้เว็บนี้ประกอบในการสอน -> [Link](https://poloclub.github.io/cnn-explainer/)

<figure><img src="/files/kjStc1p3t7phjf1Gr48V" alt=""><figcaption></figcaption></figure>

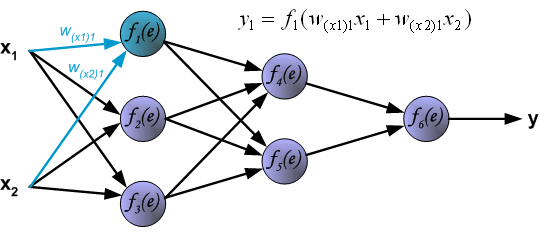

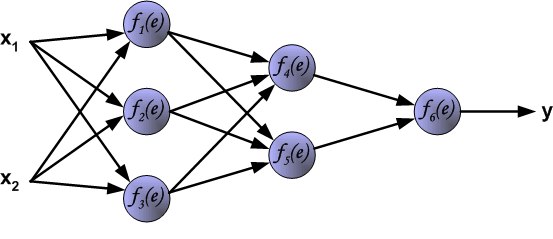

ตัวอย่างนี้จะเป็นการอธิบายการทำงาน neural network 3 layer ด้วยอินพุท 2 ตัว โดยในแต่ละ neuron จะประกอบด้วยข้อมูลที่เข้ามา 2 ตัวดังภาพ โดยภายใน f(e) จะถูกเรียกว่า “neuron activation function”

<figure><img src="/files/Sjnsk3KZfhrcc29AmlIe" alt=""><figcaption></figcaption></figure>

โดยการจะสอนให้ neural network เข้าใจในบางสิ่งเราต้องทำการ training ชุดข้อมูลที่เราจะป้อนจากภาพตัวอย่าง

* ชุดข้อมูลที่เราป้อนไปคือ x1,x2&#x20;

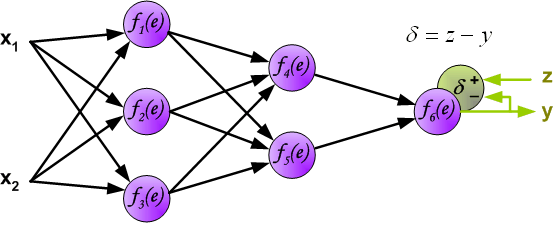

* ผลลัพธ์ที่เราคาดหวัง คือ y
* ค่า y=f(e) ซึ่งเป็นค่า non-linear ที่ได้จากผลลัพธ์ของการวิเคราะห์

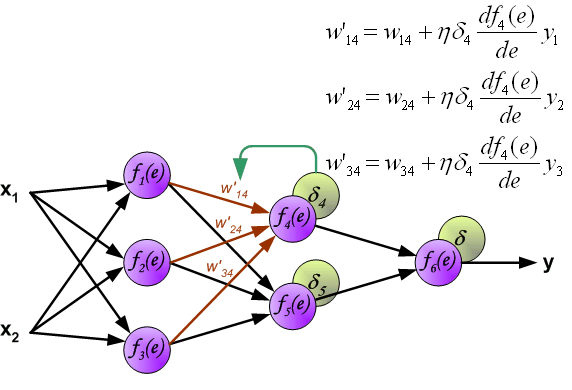

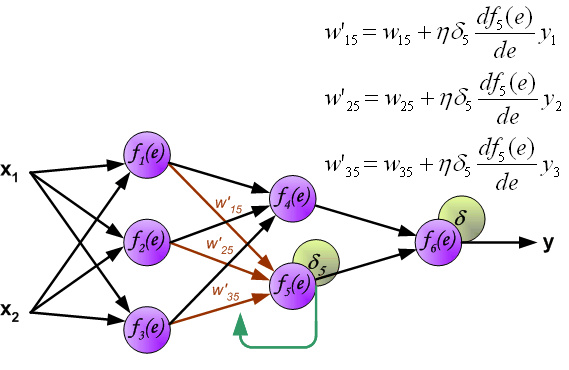

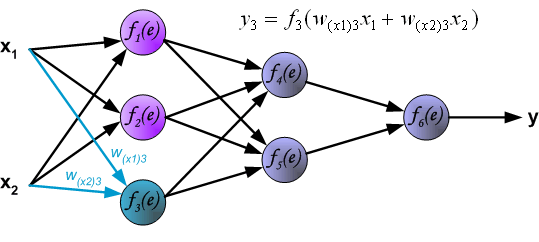

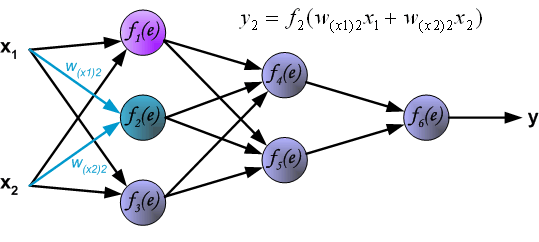

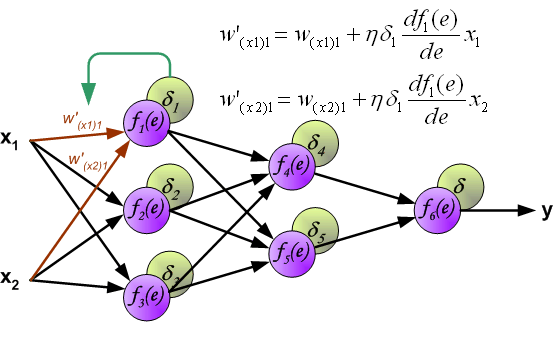

ในแต่ละรอบจะมีการ weight หรือการปรับข้อมูลให้สามารถรองรับข้อมูลที่เราป้อนหรือข้อมูลใหม่ๆได้&#x20;

<figure><img src="/files/C9TUcqszWyHyVKpREEOT" alt=""><figcaption></figcaption></figure>

<figure><img src="/files/P8hATkViW8B8GKPJ97fl" alt=""><figcaption></figcaption></figure>

<figure><img src="/files/T0mTza3DRRNyzoc40Enr" alt=""><figcaption></figcaption></figure>

<figure><img src="/files/Wn47bKleB6VsOF2HwQZJ" alt=""><figcaption></figcaption></figure>

<figure><img src="/files/tLH3WIvcPcdfAeO7sTWJ" alt=""><figcaption></figcaption></figure>

<figure><img src="/files/dnl8F9em1rKUaA1c7P8t" alt=""><figcaption></figcaption></figure>

<figure><img src="/files/Oa4vcuogi2Uuk1g53AdT" alt=""><figcaption></figcaption></figure>

<figure><img src="/files/RtbLLkqkQ3KYLggeWusN" alt=""><figcaption></figcaption></figure>

<figure><img src="/files/cNA42vIUtLSolC9LR4QU" alt=""><figcaption></figcaption></figure>

<figure><img src="/files/AHhqjydeS7XCpdozG7Wj" alt=""><figcaption></figcaption></figure>

<figure><img src="/files/syyRkVmWmPRhL4fcNhxM" alt=""><figcaption></figcaption></figure>

<figure><img src="/files/mahp1oRdH73uIxRDPCLv" alt=""><figcaption></figcaption></figure>

<figure><img src="/files/ZTzpYZGwibI4h0wbUiIR" alt=""><figcaption></figcaption></figure>

<figure><img src="/files/vFZD0jFtVkajH0XZoEjs" alt=""><figcaption></figcaption></figure>

<figure><img src="/files/dj3L8qyuFD1Z2VVd0wqO" alt=""><figcaption></figcaption></figure>


---
