# Setting program for LVGL Simulator

### [**ติดตั้ง  ubuntu 18.04** ](https://www.thaihowuse.com/%E0%B8%A7%E0%B8%B4%E0%B8%98%E0%B8%B5%E0%B8%95%E0%B8%B4%E0%B8%94%E0%B8%95%E0%B8%B1%E0%B9%89%E0%B8%87-ubuntu-%E0%B9%83%E0%B8%8A%E0%B9%89%E0%B8%84%E0%B8%B9%E0%B9%88%E0%B8%81%E0%B8%B1%E0%B8%99%E0%B8%81%E0%B8%B1%E0%B8%9A-windows-10/)

### **ติดตั้ง vscode on Ubuntu**

1. Download Visual Studio Code for Ubuntu <https://code.visualstudio.com/download>

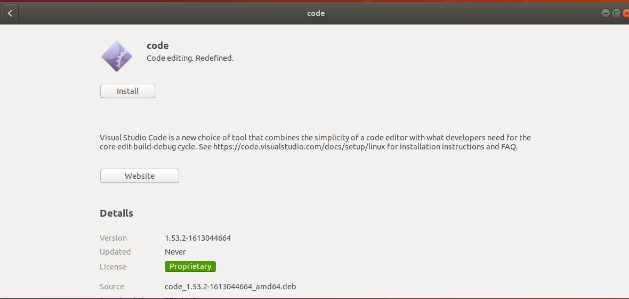

2. &#x20;คลิ๊ก ไฟล์ที่ดาวน์โหลดมาแล้วกด Install

![](https://paper-attachments.dropbox.com/s_CBE441AFCBBC6BD47122868ACD39D61F6AE20934993FE4F541AD7A3C7A7F346E_1613543358648_image.png)

&#x20;    3\. เปิด terminal พิมพ์ คำสั่ง เพื่อเปิดโปรแกรม vscode&#x20;

```bash
$ code .
```

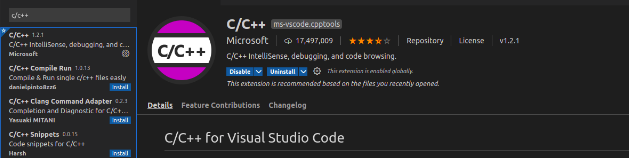

&#x20;  กด Ctrl+shift+x พิมพ์ c/c++ ในช่อง extensions แล้วกด Install

![](https://paper-attachments.dropbox.com/s_CBE441AFCBBC6BD47122868ACD39D61F6AE20934993FE4F541AD7A3C7A7F346E_1613543398587_image.png)

### **Install package SDL2**

```bash
$ sudo apt-get update && sudo apt-get install -y build-essential libsdl2-dev
```

### **Download LVGL library โดยใช้คำสั่ง git clone**&#x20;

```bash
$ git clone --recursive https://github.com/lvgl/lv_sim_vscode_sdl
```

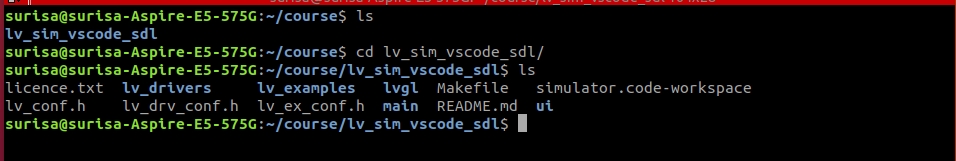

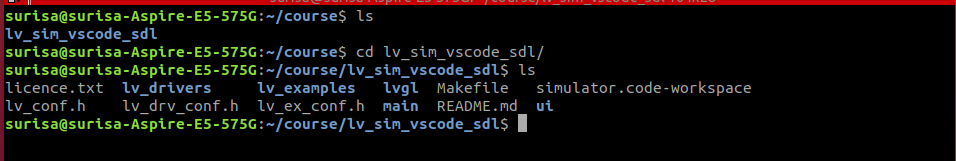

ใช้คำสั่ง cd เข้าไปยังโฟลเดอร์ lvgl ที่ดาวน์โหลดมา

```bash
$ ls
$ cd lv_sim_vscode_sdl
```

![](https://paper-attachments.dropbox.com/s_ECCD5225C8E45672B6A991A36DA84EC88BB3C63633F01E6B47FACA506A564F4A_1613560579703_Screenshot+from+2021-02-17+18-15-41.png)

เปิดโปรแกรม vscode ด้วยคำสั่ง command line

```bash
code .
```

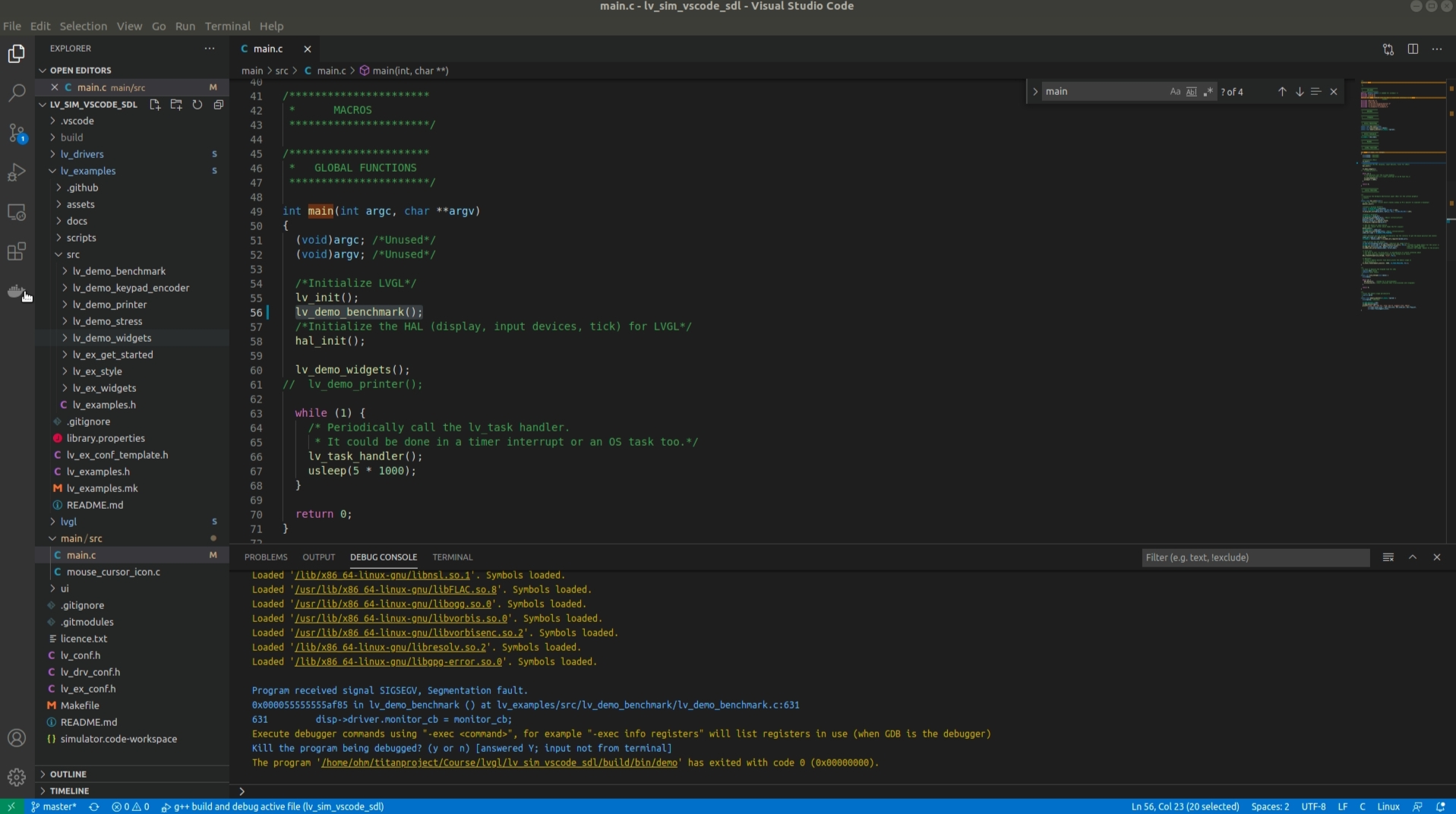

![โปรแกรม lvgl simulator บน vscode](https://paper-attachments.dropbox.com/s_ECCD5225C8E45672B6A991A36DA84EC88BB3C63633F01E6B47FACA506A564F4A_1613558217918_589482.png)

เมื่อหน้าต่างโปรแกรม lvgl simulator บน vscode ปรากฏ ให้กด F5 เพื่อ complie โปรแกรม simulater รอสักครู่ จะมีหน้า UI ของโปรแกรม lvgl simulator แสดงขึ้นมา

![หน้าต่างที่ปรากฏขึ้นหลังจากกด F5](/files/-MdzJ5OxOZDu6jb7iFD8)


---
