# Infineon Gateway
## [Infineon + RT-Thread IoT DEMO](https://www.rt-thread.org/document/site/#/rt-thread-version/rt-thread-standard/tutorial/open-projects-design/Infineon/Infineon-gateway-demo?id=infineon-rt-thread-%e7%89%a9%e8%81%94%e7%bd%91-demo)
### [Introduction](https://www.rt-thread.org/document/site/#/rt-thread-version/rt-thread-standard/tutorial/open-projects-design/Infineon/Infineon-gateway-demo?id=%e7%ae%80%e4%bb%8b)
This is an IoT DEMO based on `CY8CPROTO-062-4343W`development board + implementation.`RT-Thread`
This article will introduce how to build an IoT demo from scratch step by step.
The following figure is the overall design block diagram, using `RW007`for network communication, using `MQTT`the protocol to connect to the One-Net IoT platform. Add the required software packages, components and other middleware to the main control chip to quickly build a device cloud demo.
### [Actual operation effect](https://www.rt-thread.org/document/site/#/rt-thread-version/rt-thread-standard/tutorial/open-projects-design/Infineon/Infineon-gateway-demo?id=%e5%ae%9e%e9%99%85%e8%bf%90%e8%a1%8c%e6%95%88%e6%9e%9c)

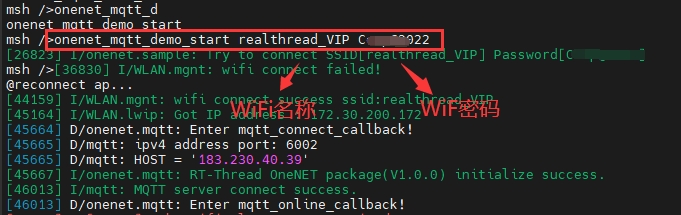

1\. Enter the command in msh `onenet_mqtt_demo_start 【WI-Fi 名称】 【WI-Fi 密码】`to create and start the demo thread

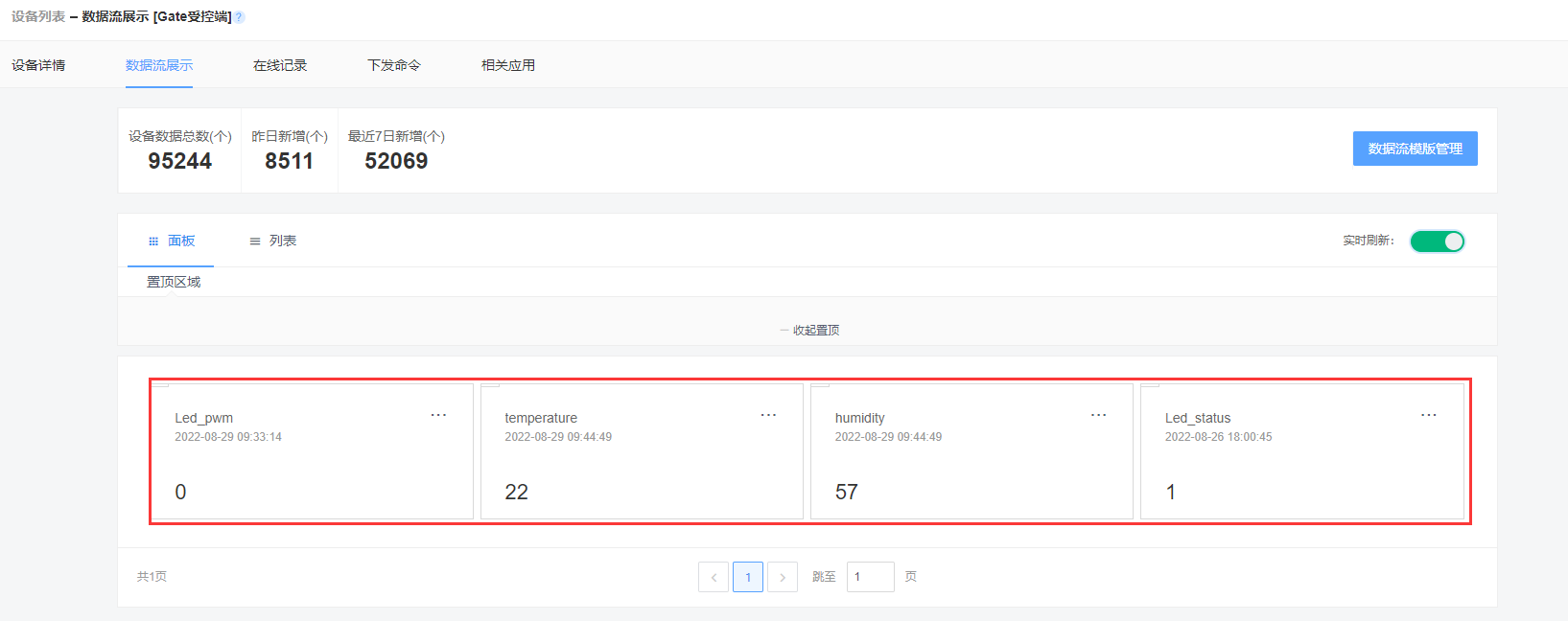

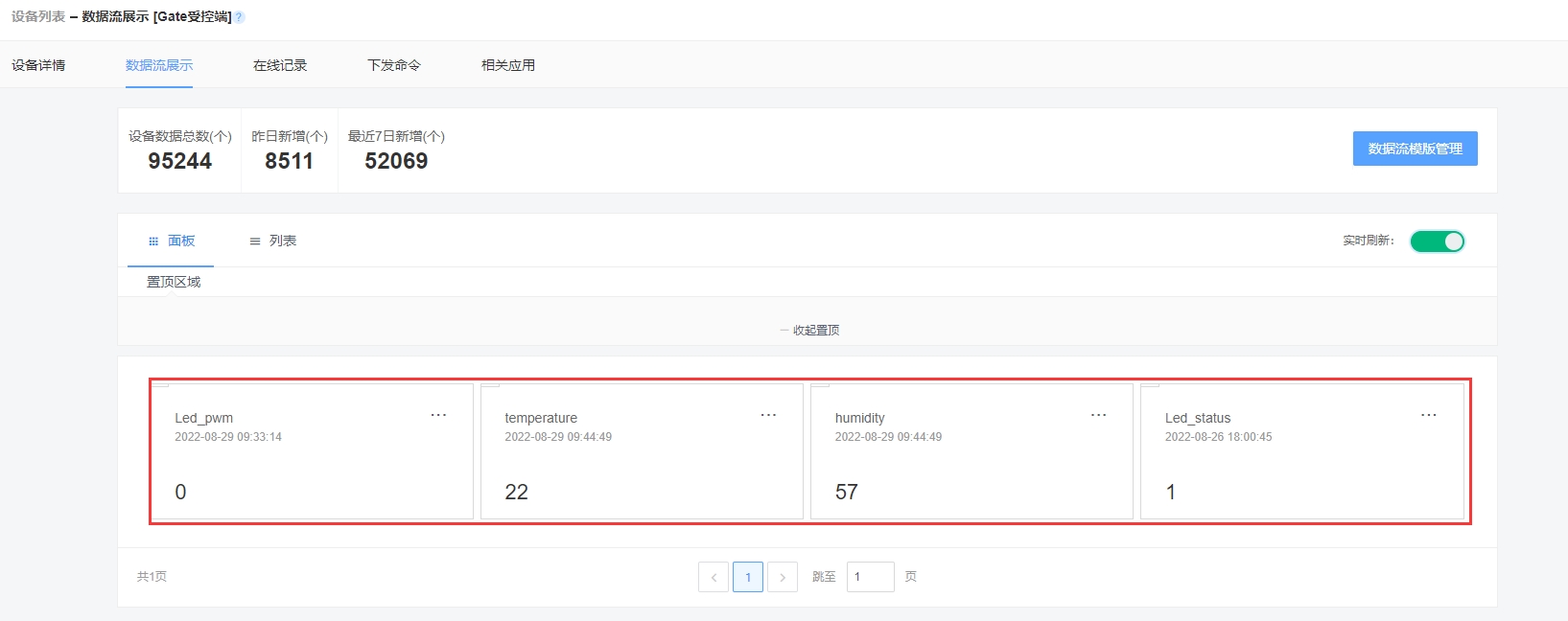

2\. View the real-time refreshed data on the device debugging page of the cloud platform.

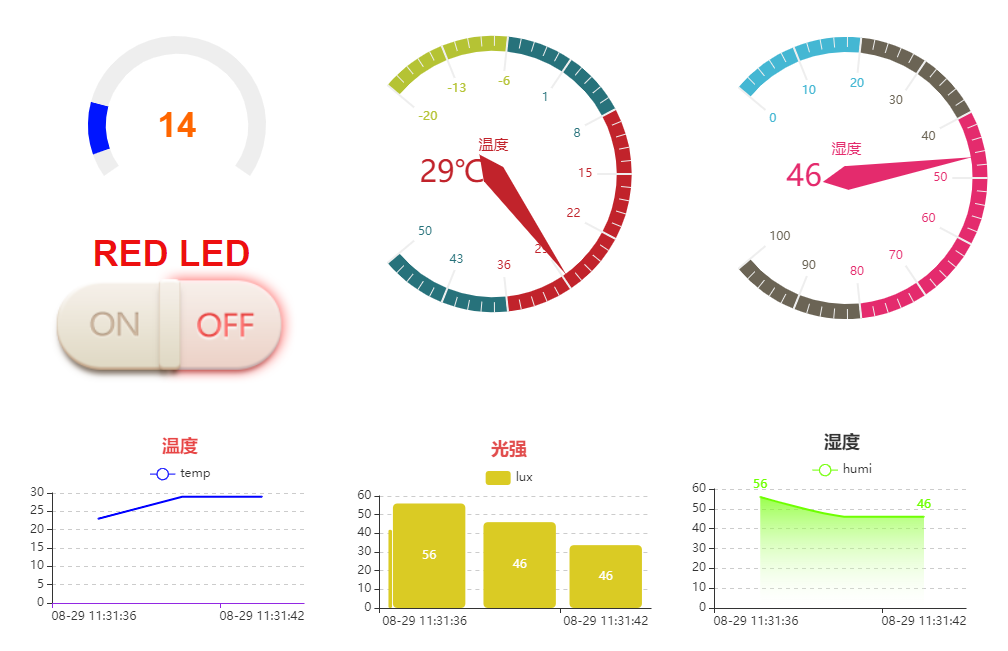

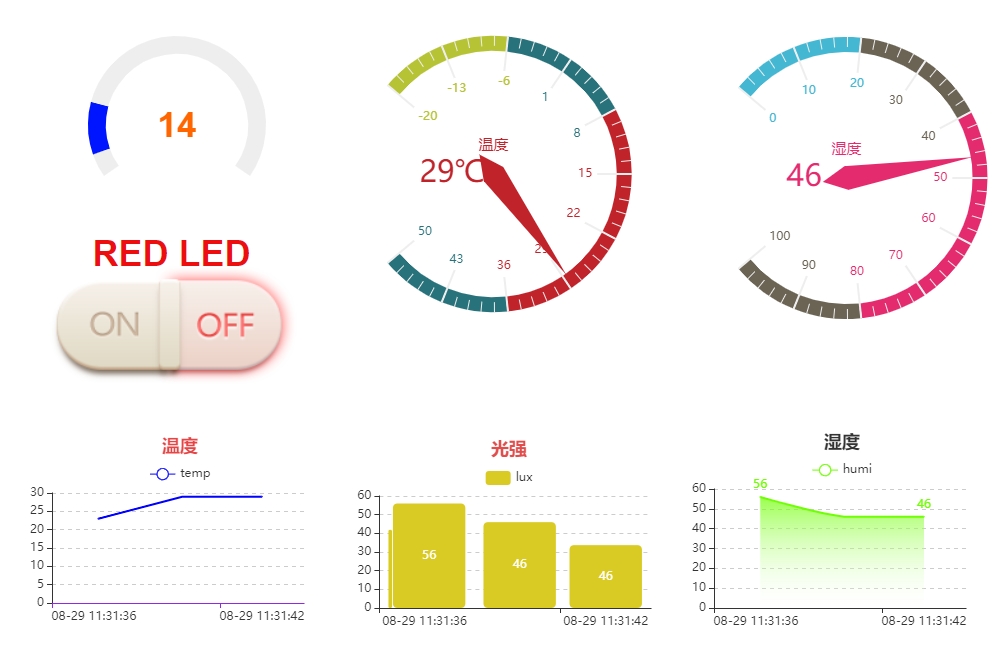

3\. Enter [the visualization website](https://open.iot.10086.cn/iotbox/appsquare/appview?openid=edfdb062942604d9b1de5674d7433497) to view/send data uplink and downlink
### [Preparation](https://www.rt-thread.org/document/site/#/rt-thread-version/rt-thread-standard/tutorial/open-projects-design/Infineon/Infineon-gateway-demo?id=%e5%87%86%e5%a4%87%e5%b7%a5%e4%bd%9c)
* [RT-Thread studio v2.2.5](https://download-sh-cmcc.rt-thread.org:9151/www/studio/download/RT-Thread%20Studio-v2.2.5-setup-x86_64_202208011830.exe)
* OneNET: [China Mobile's open IoT platform](https://open.iot.10086.cn/)
* [CY8CPROTO-062-4343W Development Board](https://www.rt-thread.org/document/site/#/rt-thread-version/rt-thread-standard/tutorial/quick-start/CY8CPROTO-062-4343W/quick-start)
* USB-TTL: Connect to UART5 (TX: P5\_1; RX: P5\_0) **baud rate 115200**
* WiFi network module: [RW007](https://www.rt-thread.org/document/site/#/rt-thread-version/rt-thread-standard/application-note/packages/rw007_module_using/an0034-rw007-module-using?id=rw007)

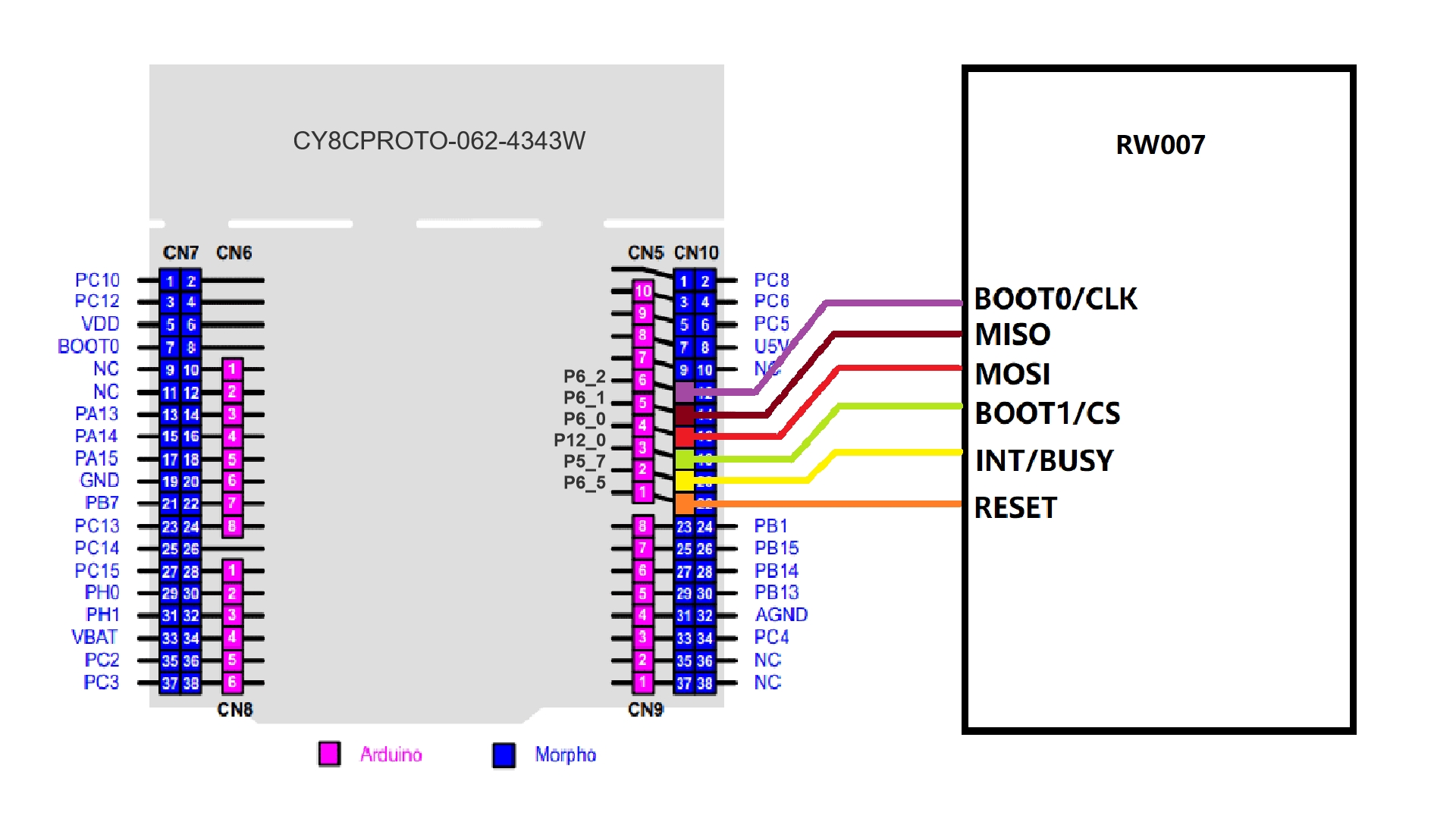

The corresponding relationship table between each IO interface and function:
| CY8CPROTO-062-4343W Pin Name | Function |
| :--------------------------: | :-------: |
| P6\_2 | BOOT0/CLK |
| P6\_1 | MISO |
| P6\_0 | MOSI |
| P12\_0 | BOOT1/CS |
| P5\_7 | INT/BUSY |
| P6\_5 | RESET |
### [Implementation process](https://www.rt-thread.org/document/site/#/rt-thread-version/rt-thread-standard/tutorial/open-projects-design/Infineon/Infineon-gateway-demo?id=%e5%ae%9e%e7%8e%b0%e8%bf%87%e7%a8%8b)

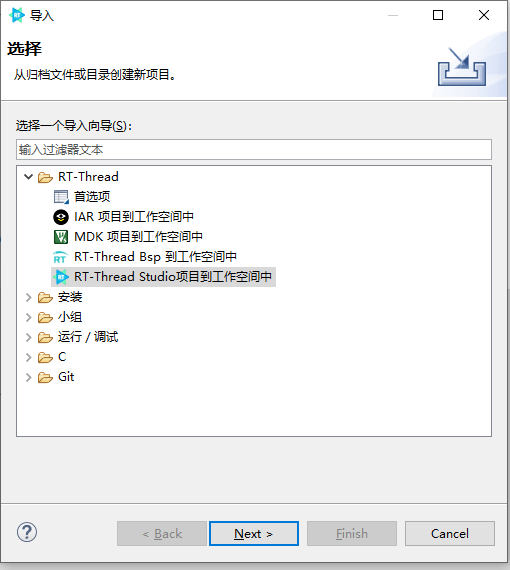

1. Open RT-Thread studio and import the development board sample project: Click the upper left corner of Studio`文件—>导入—>RT-Thread Studio项目到工作空间中`

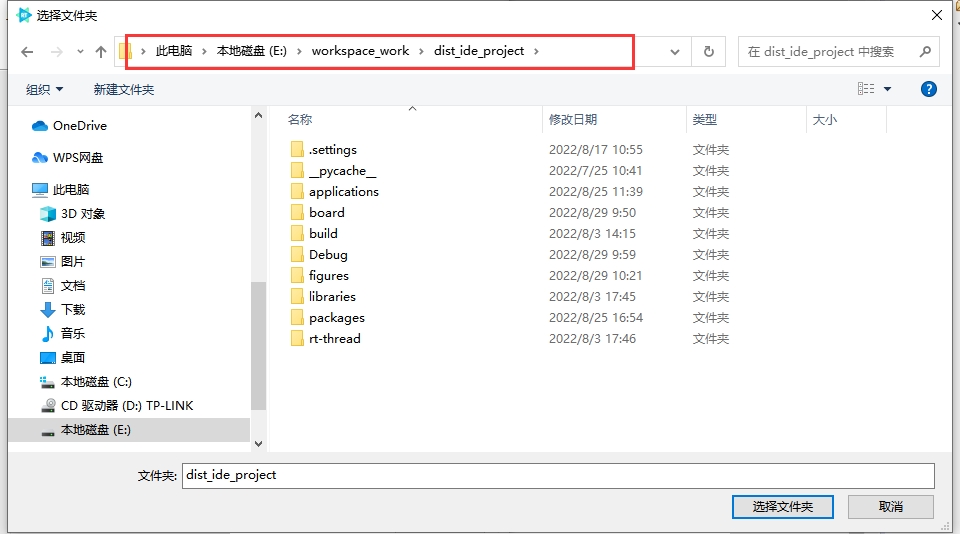

2. Select the root directory of this sample project to import

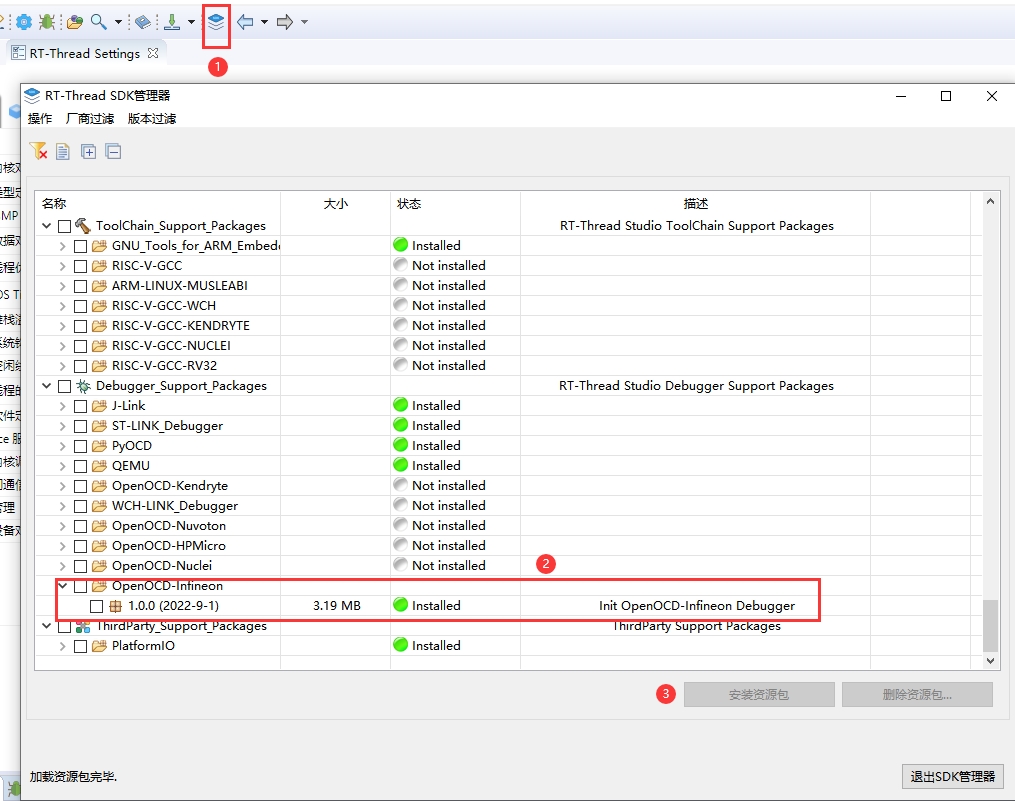

3. Enter `RT-Studio` the SDK manager and download the Infineon `OpenOCD`resource package.

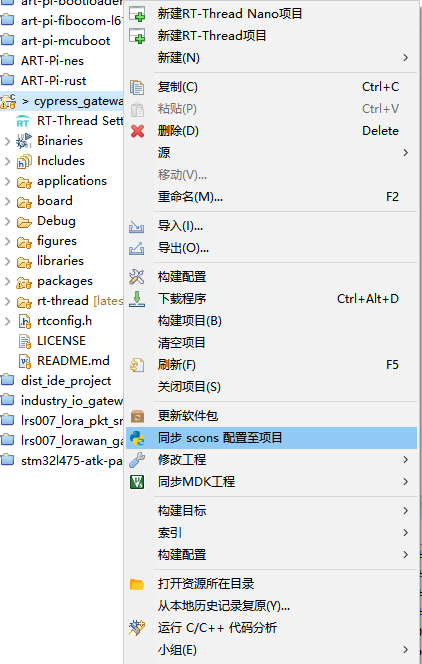

4. Right-click the project and click`同步 scons 配置至项目`
5. Compile, download, and verify the running results
* Click the Build option in the upper left corner of the IDE to compile the project.
* When the compilation is complete without error warnings, click `Debug`or `Download`to debug/download.

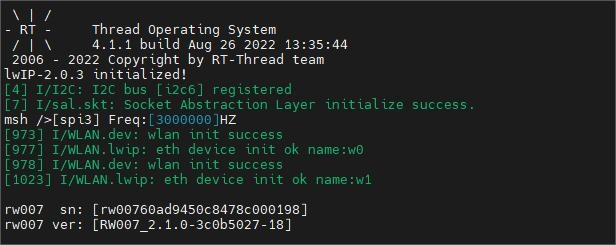

Note: If the serial terminal does not display any information after clicking Download and the download is successful, please manually press the reset button to restart the system.
* Check system operation status

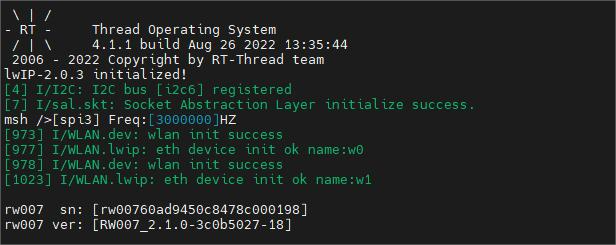

> `help`Enter commands such as , `ps`, `free`and so on in the serial terminal `list_device`to view the system operation status
6. Lianyun Configuration
* Create a project on [the cloud platform . After the creation is complete, click the console to enter the configuration](https://open.iot.10086.cn/)

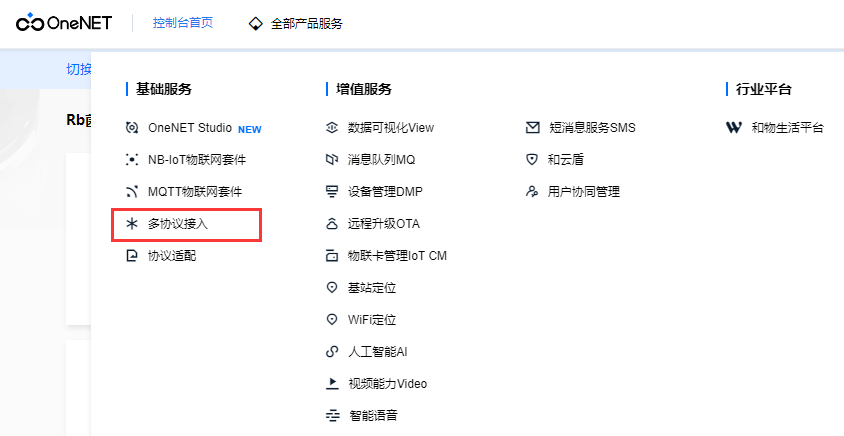

* Click `全部产品服务—>多协议接入`to enter the configuration interface

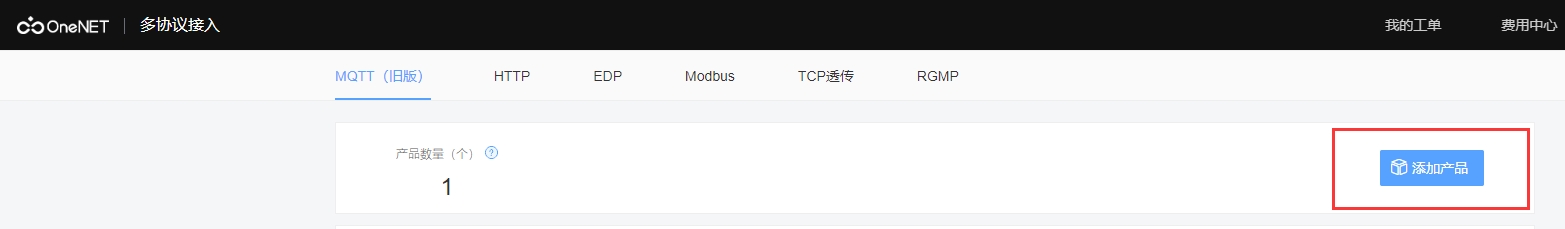

* Add products

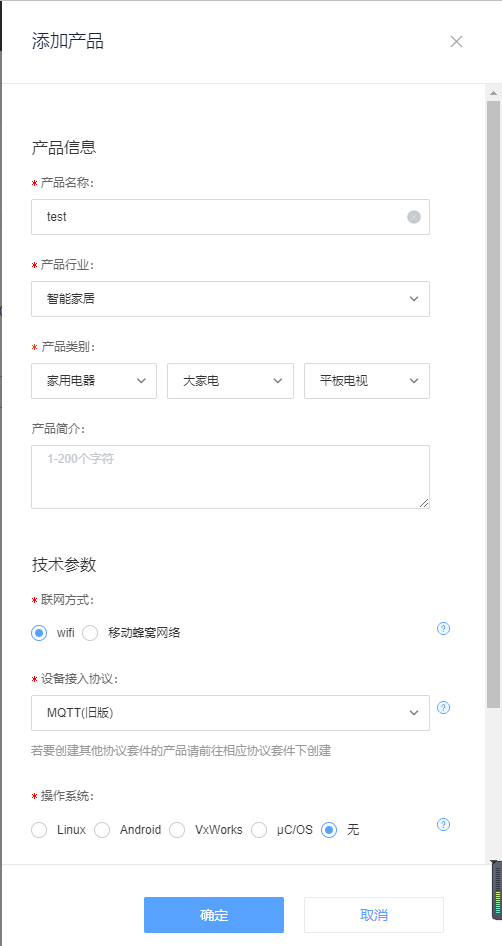

* Enter product information

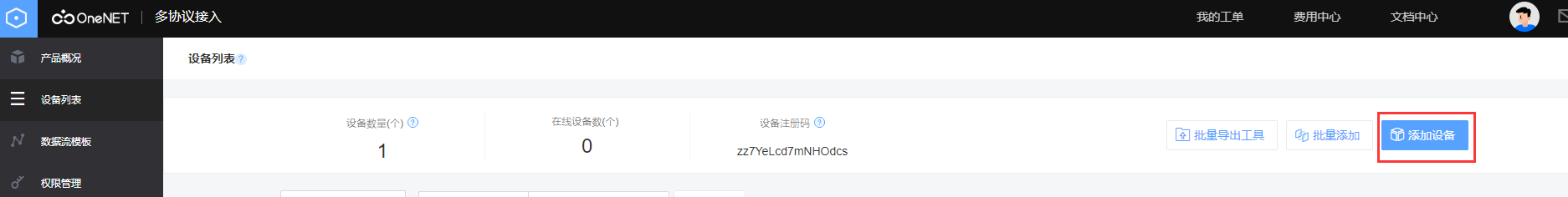

* Add a device

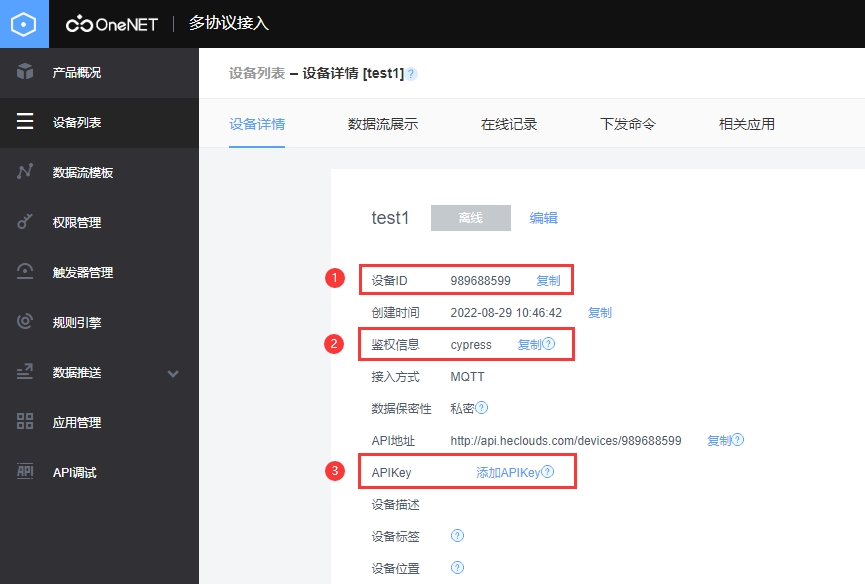

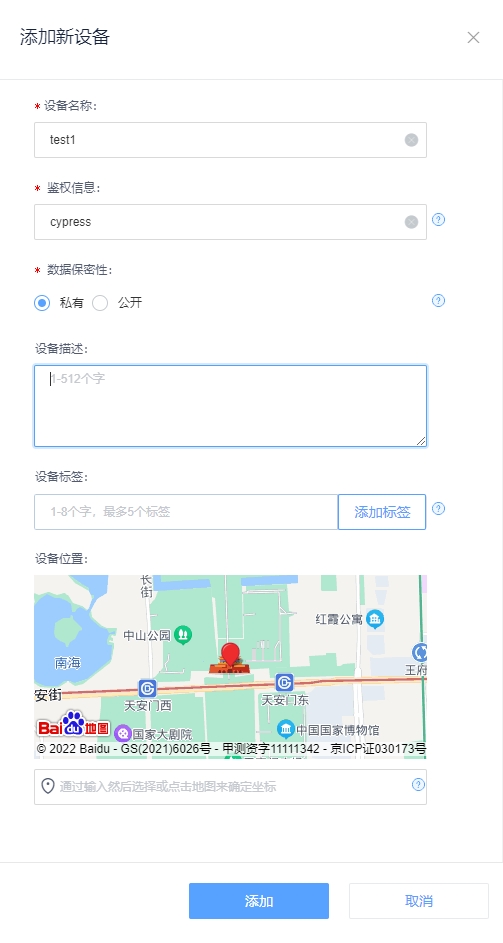

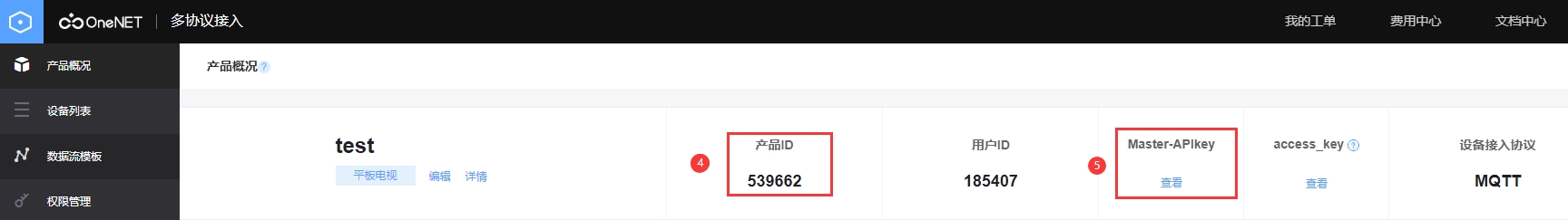

* Enter device information

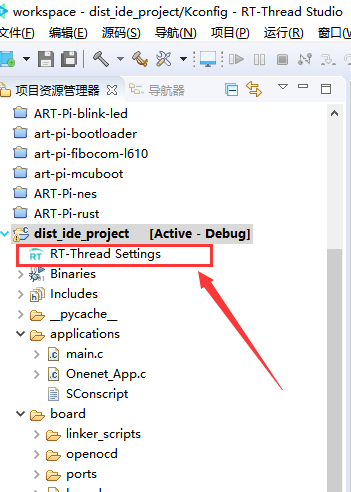

* Enter `RT-Thread Studio`, double-click under this project `RT-Thread Settings`to enter the project configuration interface

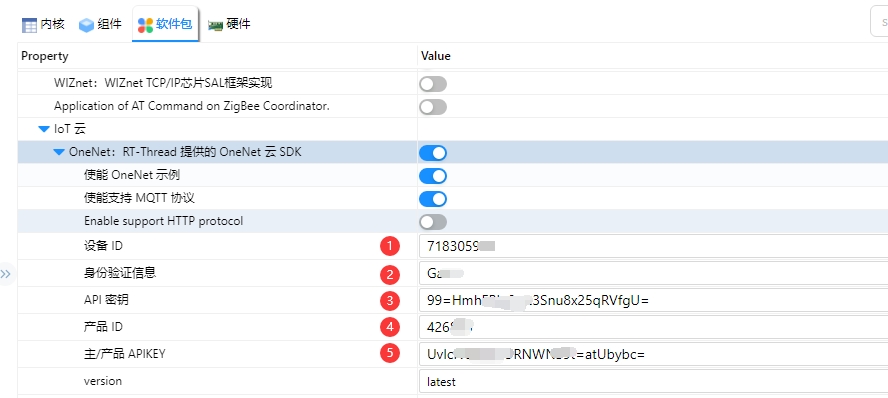

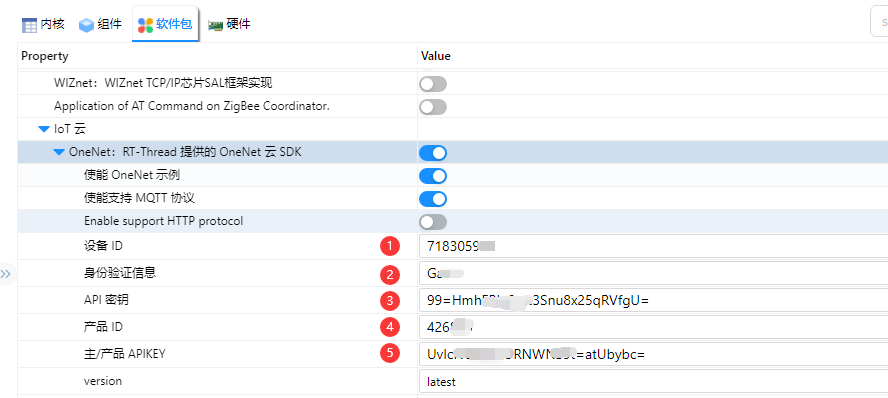

* Compare `OneNet`the information and fill it into the configuration options
* Compile, download, and verify the data reporting and sending functions of the IOT gateway.
### [More information](https://www.rt-thread.org/document/site/#/rt-thread-version/rt-thread-standard/tutorial/open-projects-design/Infineon/Infineon-gateway-demo?id=%e6%9b%b4%e5%a4%9a%e8%b5%84%e6%96%99)
* [Development board official website homepage](https://www.infineon.com/cms/en/product/evaluation-boards/cy8cproto-062-4343w/)
* [Development Board Schematic](https://www.infineon.com/dgdl/Infineon-CY8CPROTO-062-4343W_Schematic-PCBDesignData-v01_00-EN.pdf?fileId=8ac78c8c7d0d8da4017d0f010c6d183a\&utm_source=cypress\&utm_medium=referral\&utm_campaign=202110_globe_en_all_integration-files)
* [Infineon Technologies Quick Start Guide](https://www.rt-thread.org/document/site/#/rt-thread-version/rt-thread-standard/tutorial/quick-start/CY8CKIT-062S2-43012/quick-start)
* [CY8CPROTO-062-4343W\_datasheet](https://www.infineon.com/dgdl/Infineon-PSOC_6_MCU_CY8C62X8_CY8C62XA-DataSheet-v17_00-EN.pdf?fileId=8ac78c8c7d0d8da4017d0ee7d03a70b1)
